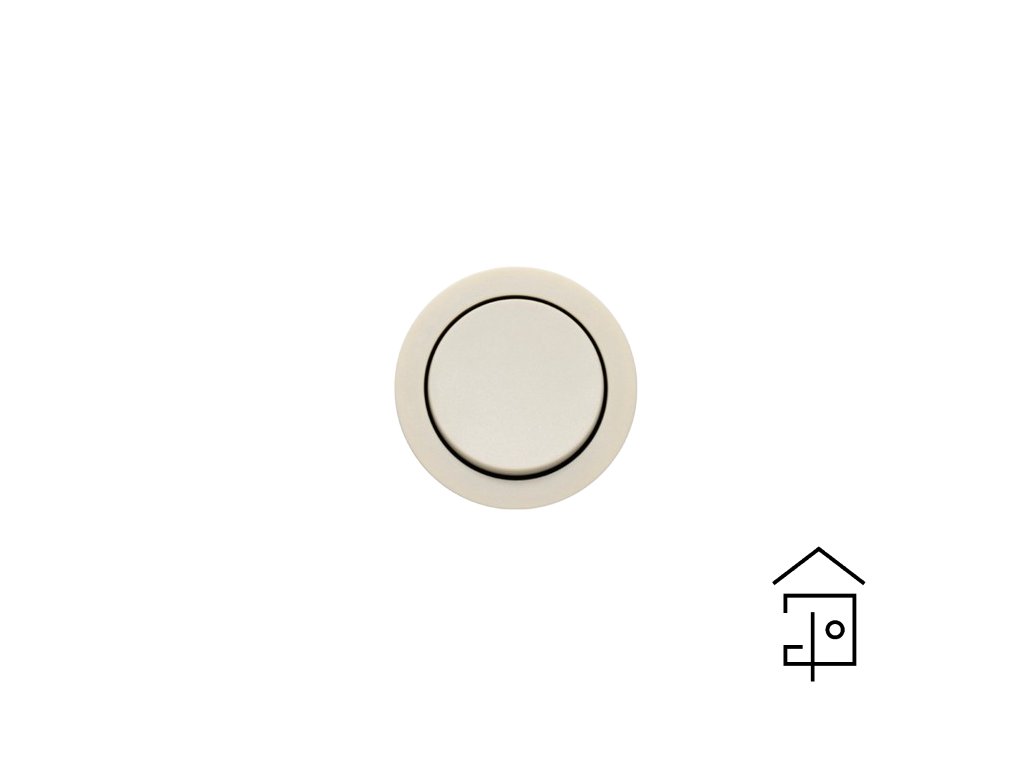

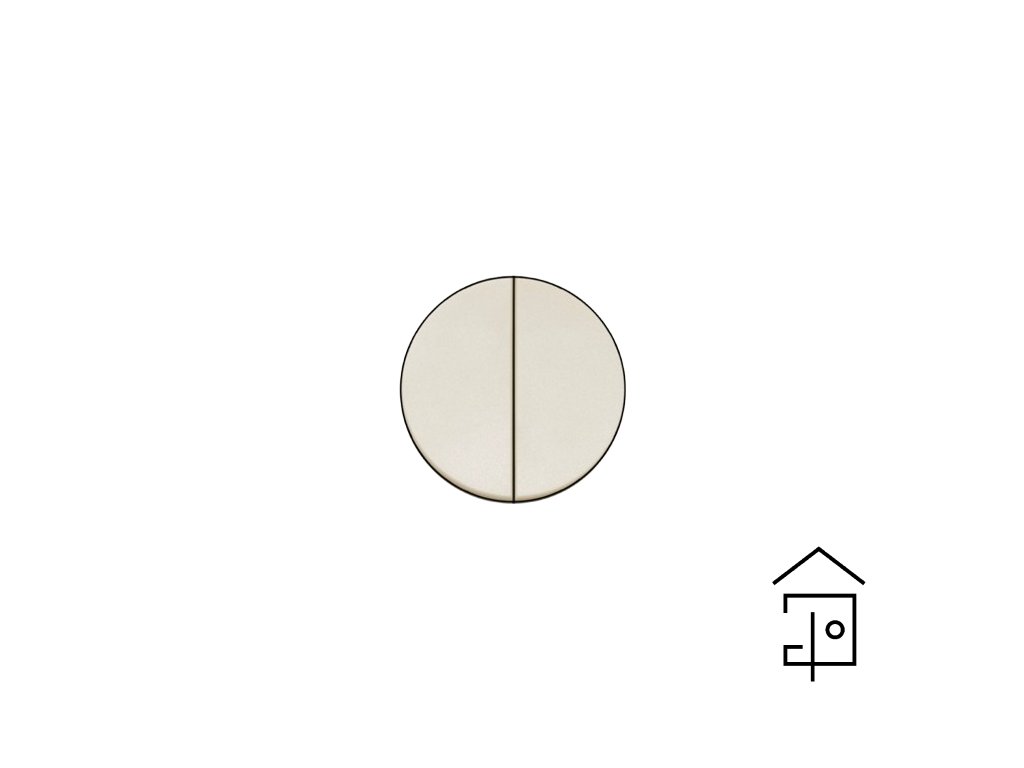

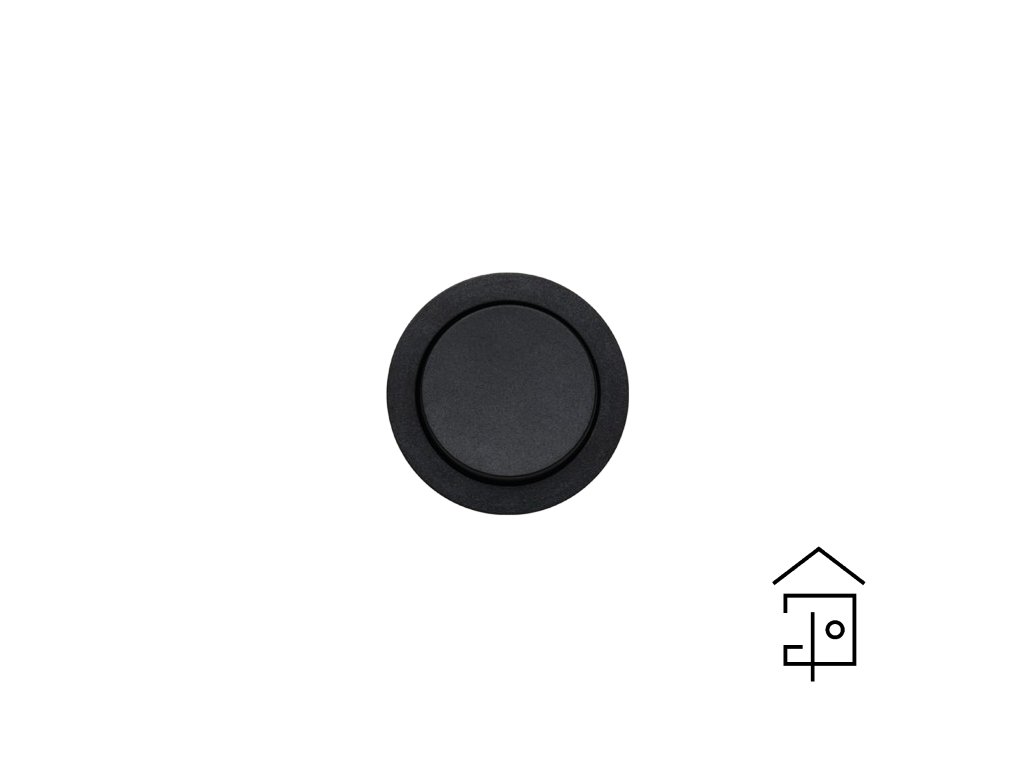

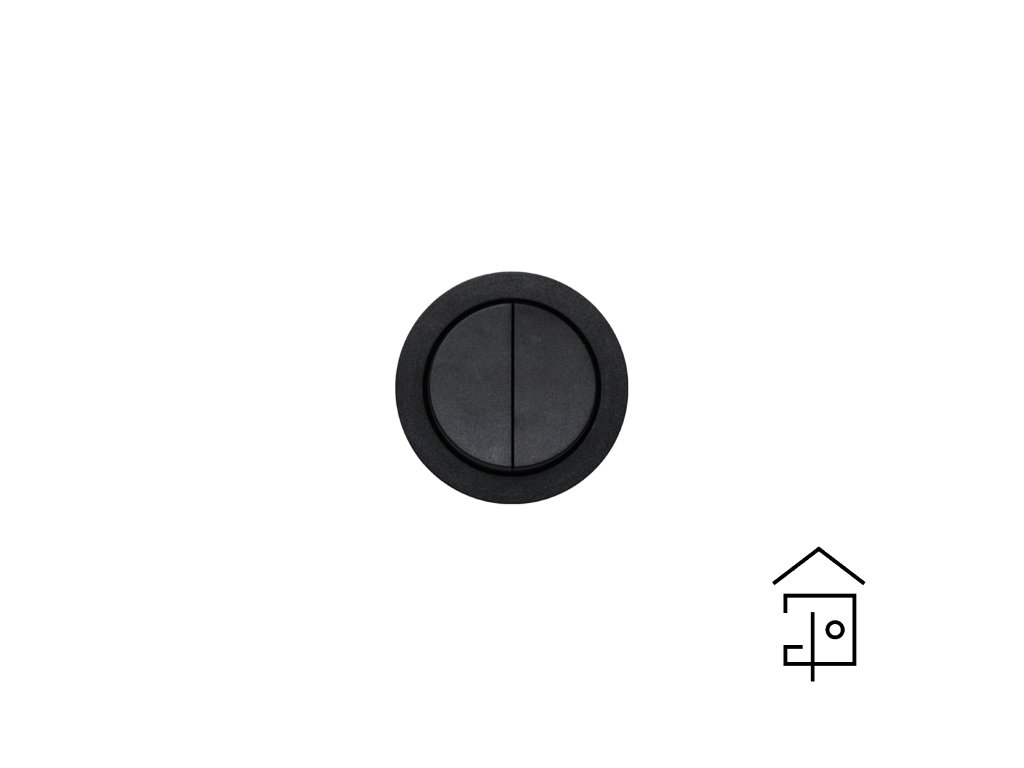

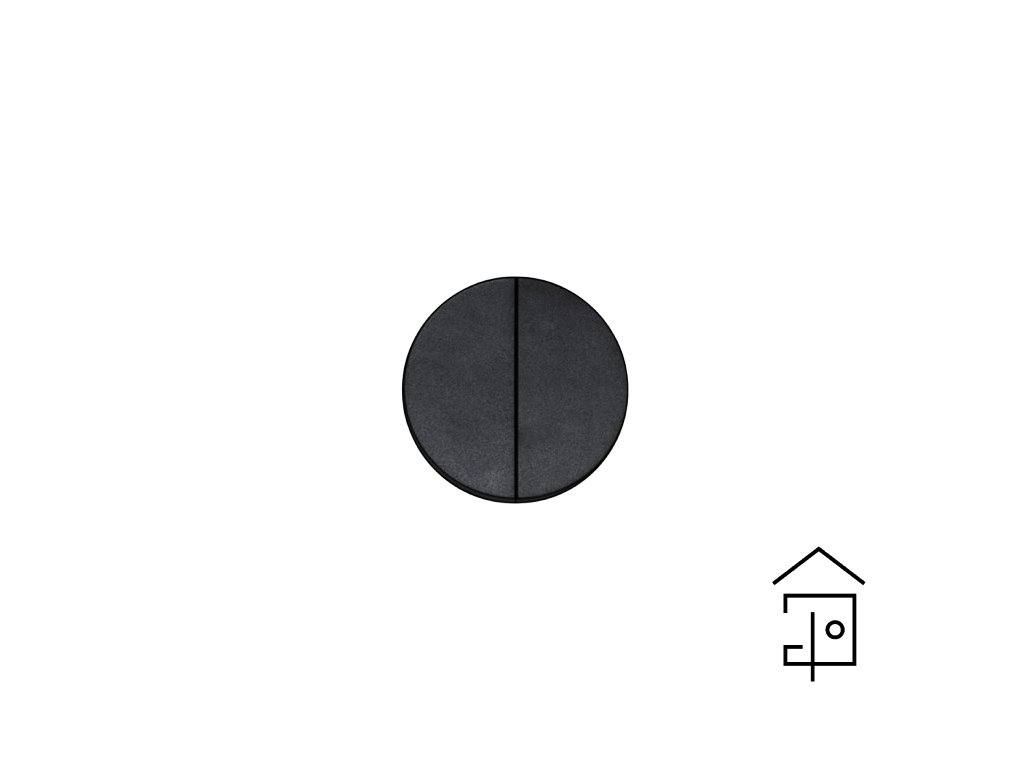

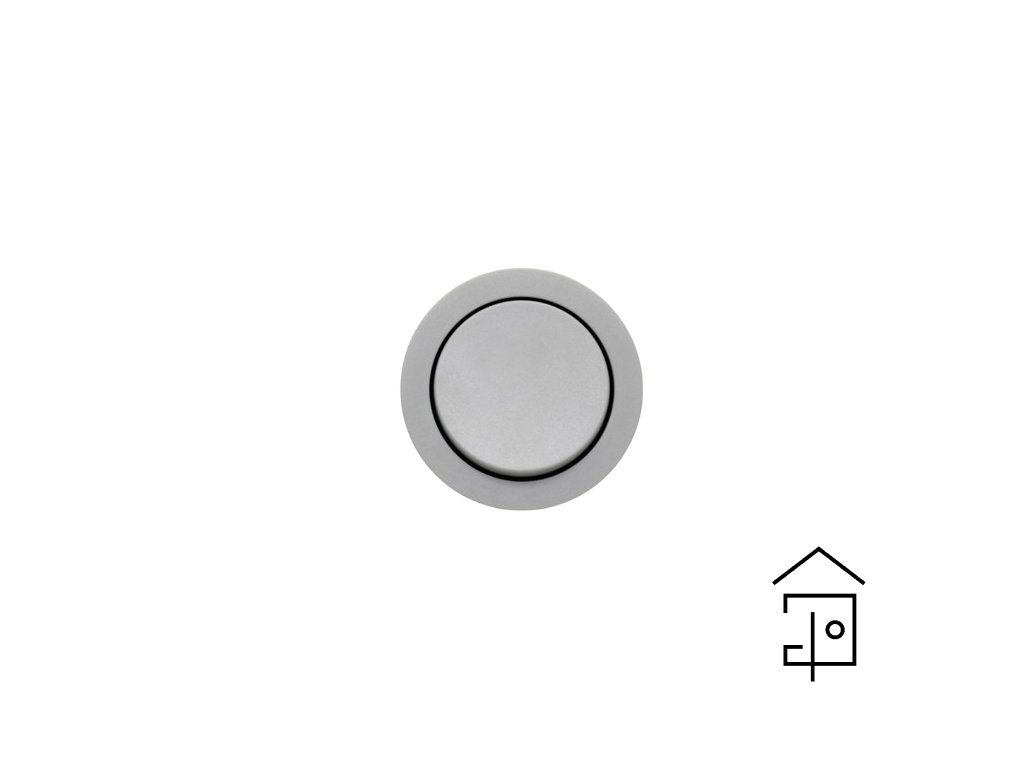

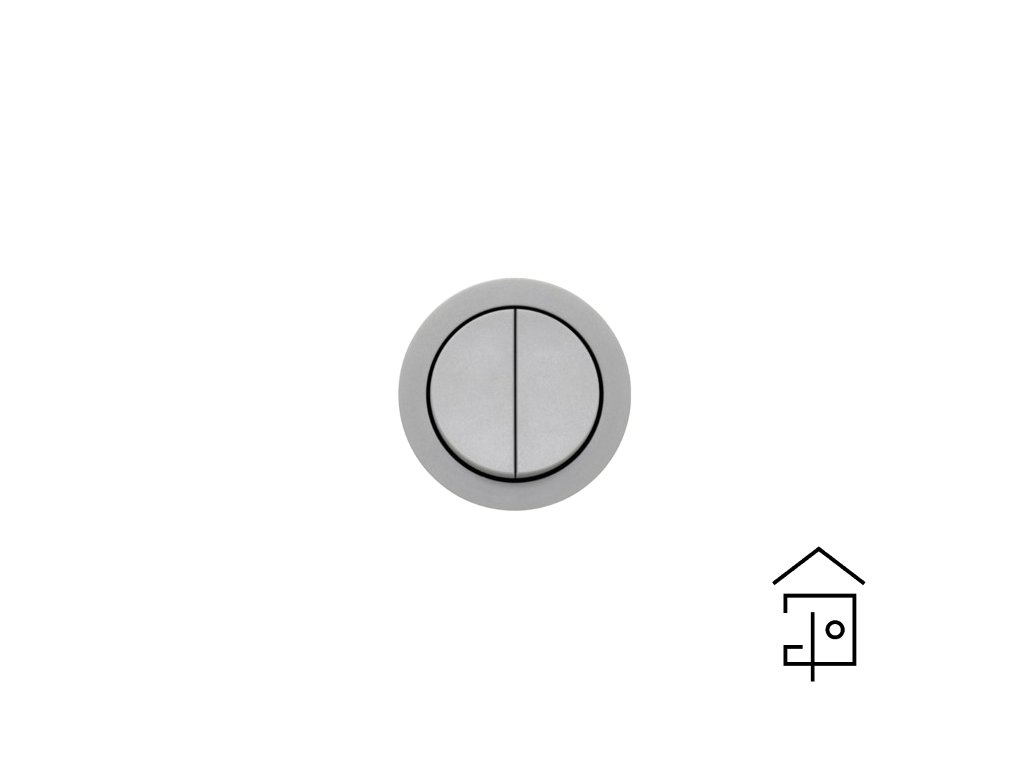

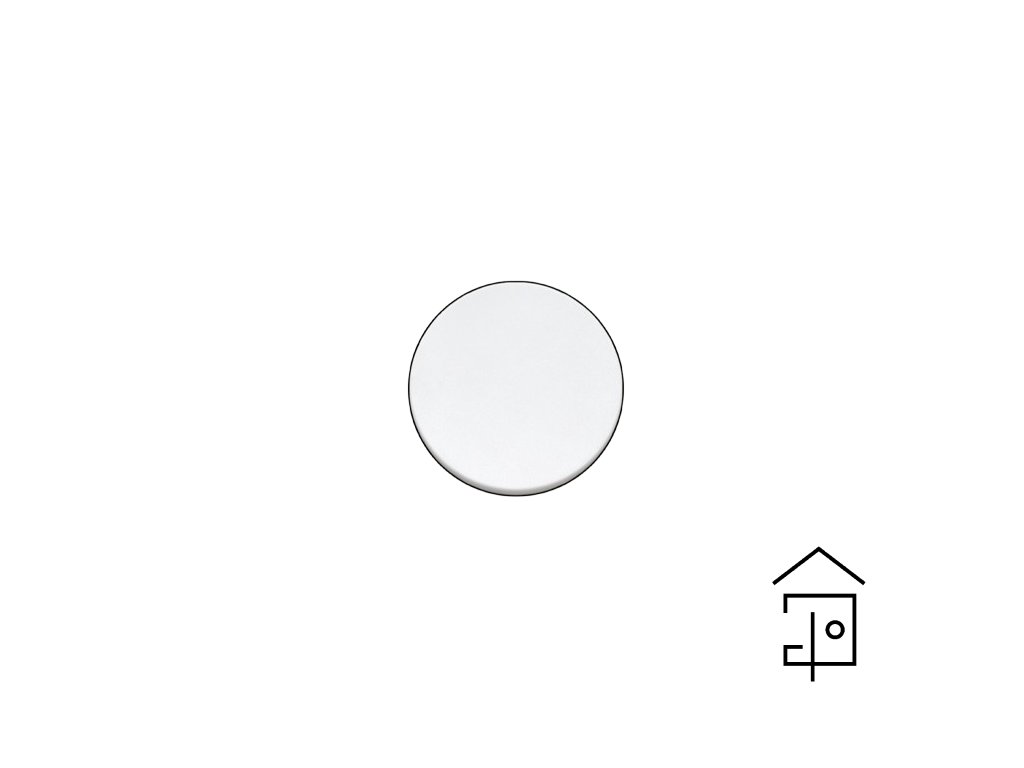

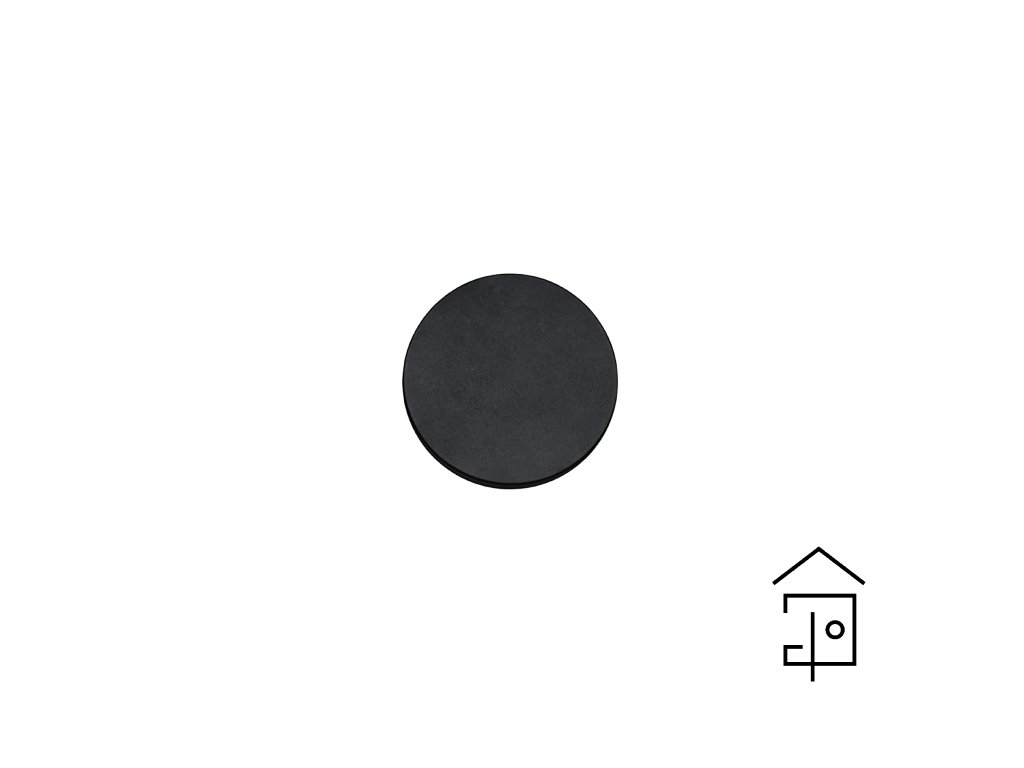

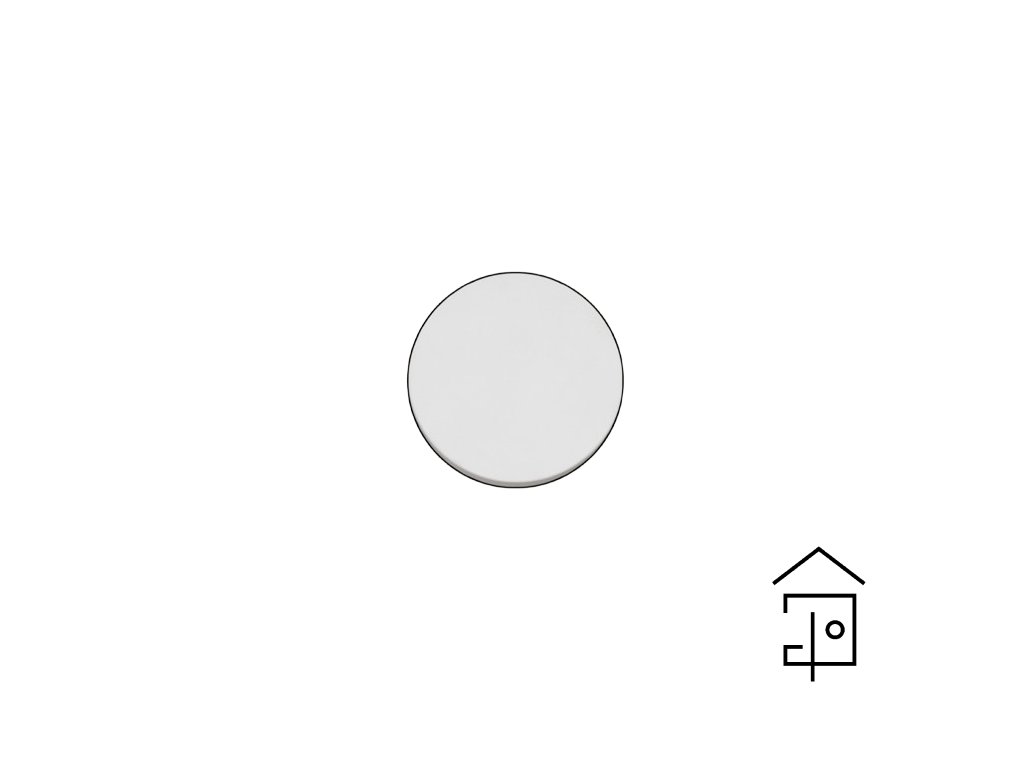

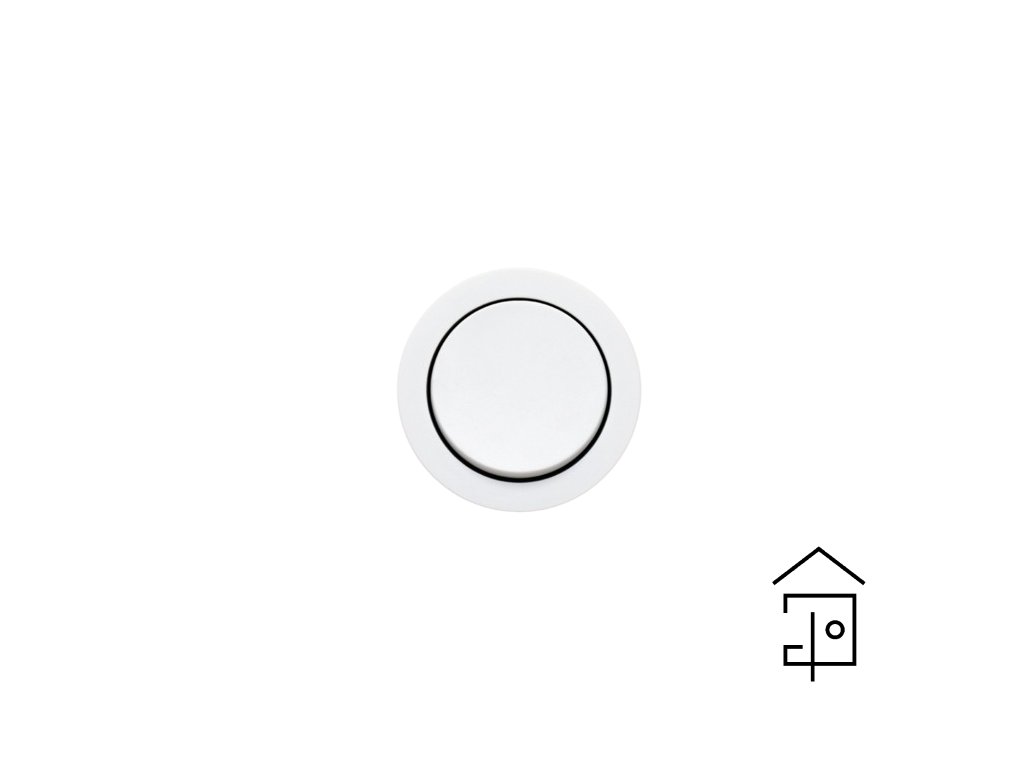

rond 2.0 | switches 230 V - retrofit, easyfit
Suitable for plastered walls.
Accessories required for installation in wood, stone, veneer: Installation adapter Backfit holder: 8800-2016 - for panel thickness 18-19 mm - see related section
Accessories required for installation in masonry: Installation adapter Retrofit plaster ring 8800-2011 - compatible with standard junction box Ø68 - see related section
Recommended accessories: Removal tool: 8800-2010 - tool for removing sockets/switches - see related section

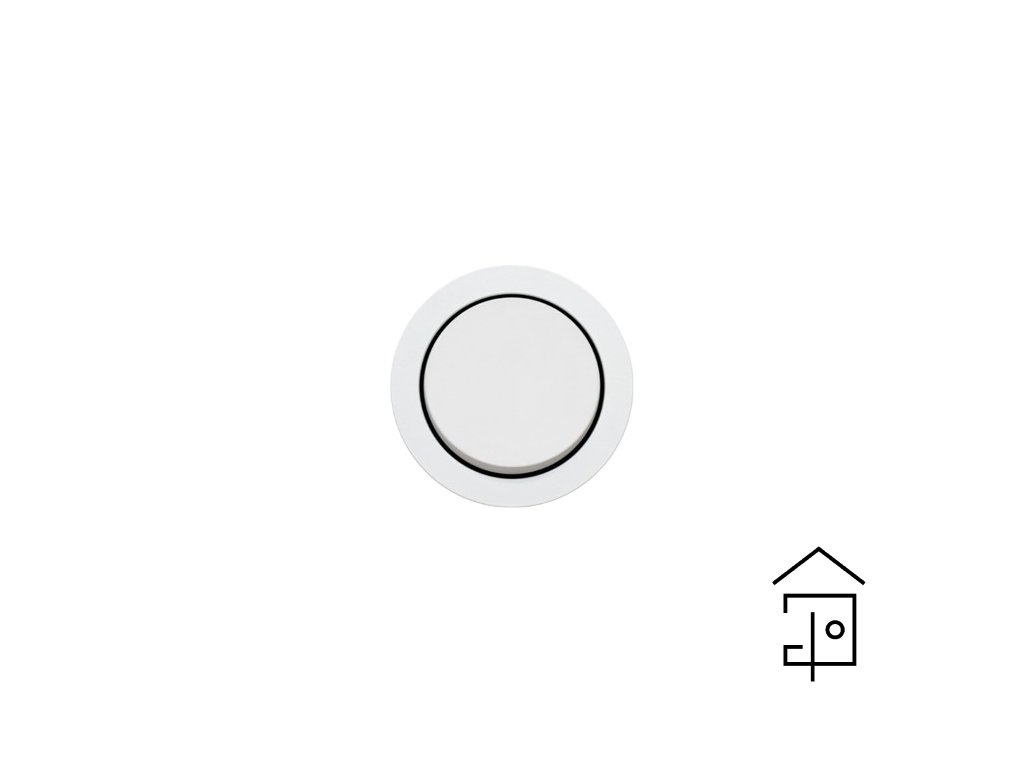

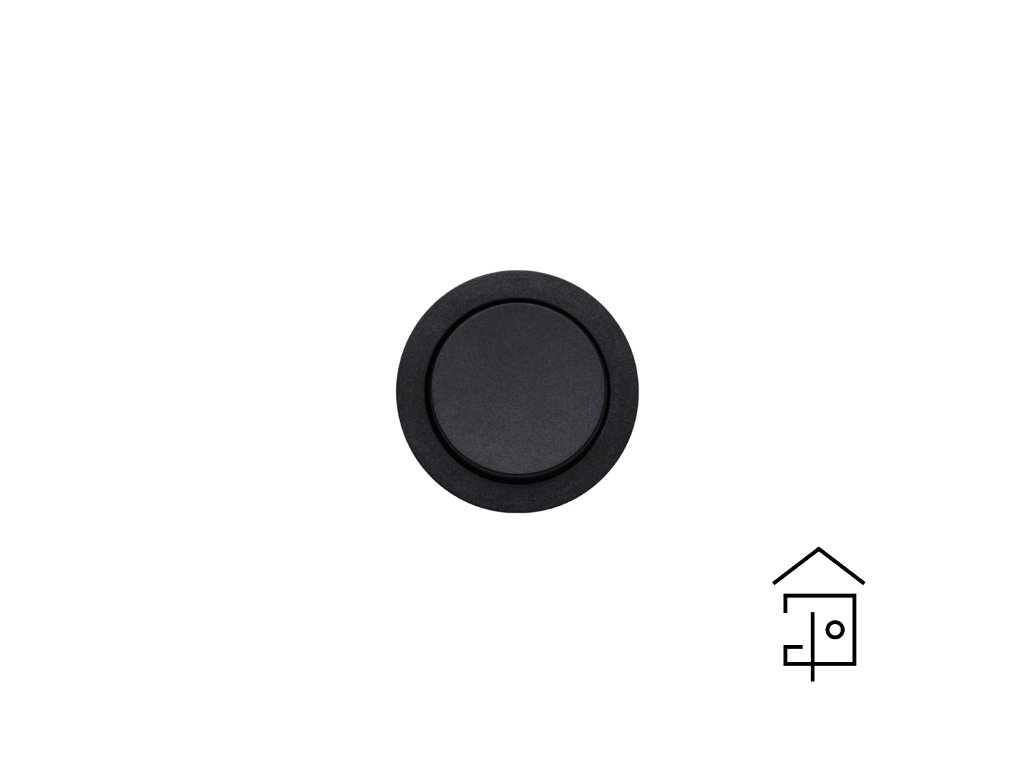

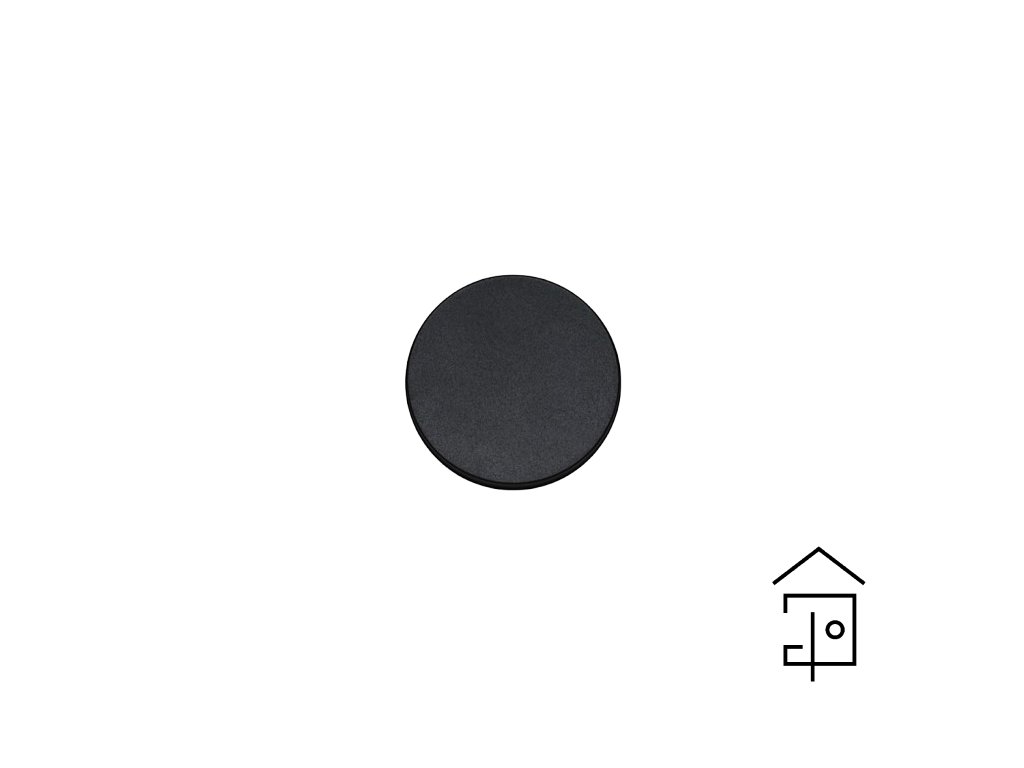

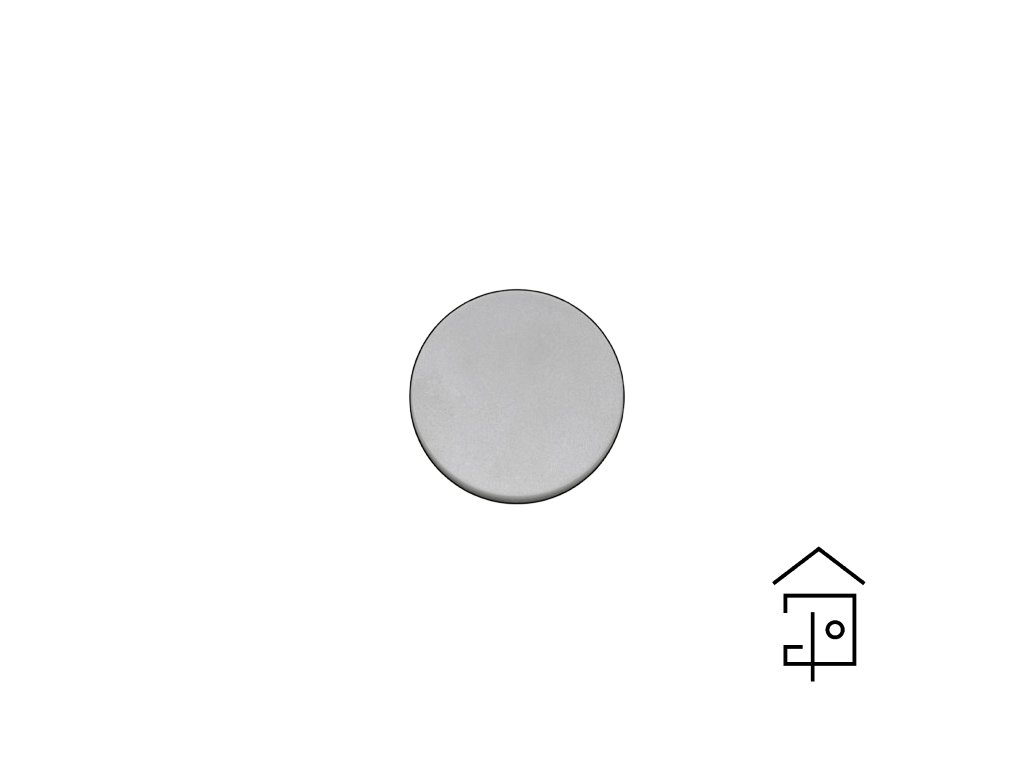

Rond 2.0 “classic” 230V switches are the perfect choice for renovations and projects without home automation.
Every 45° rotatable. Compatible with all rond 2.0 installation kits for wider application possibilities.

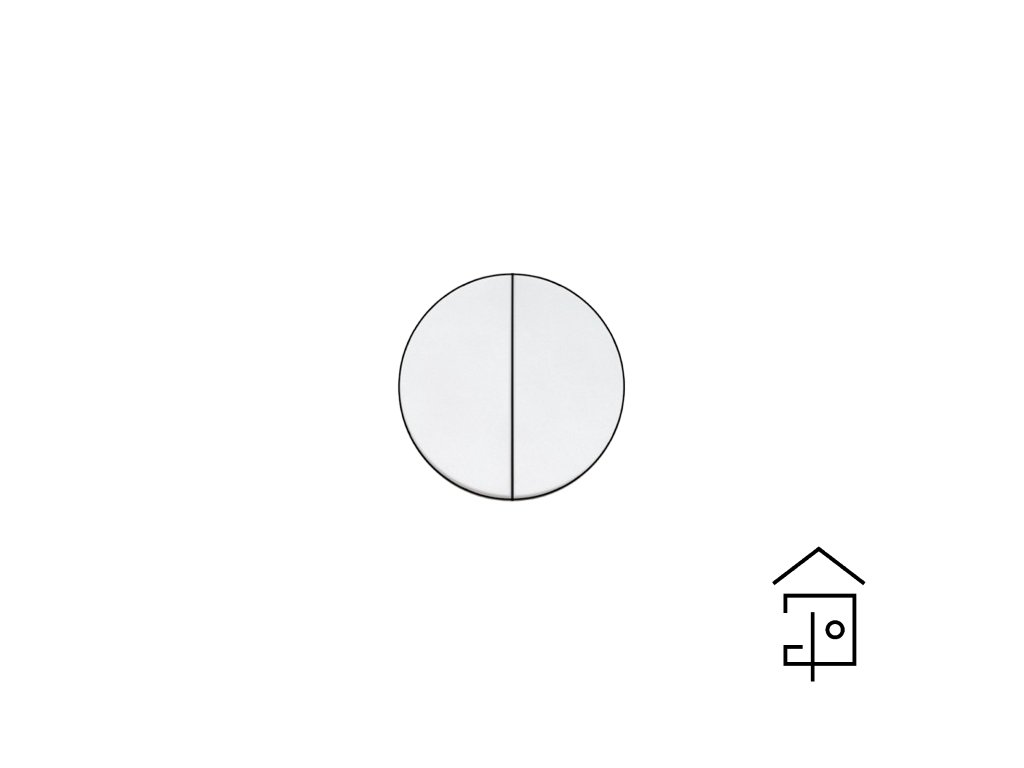

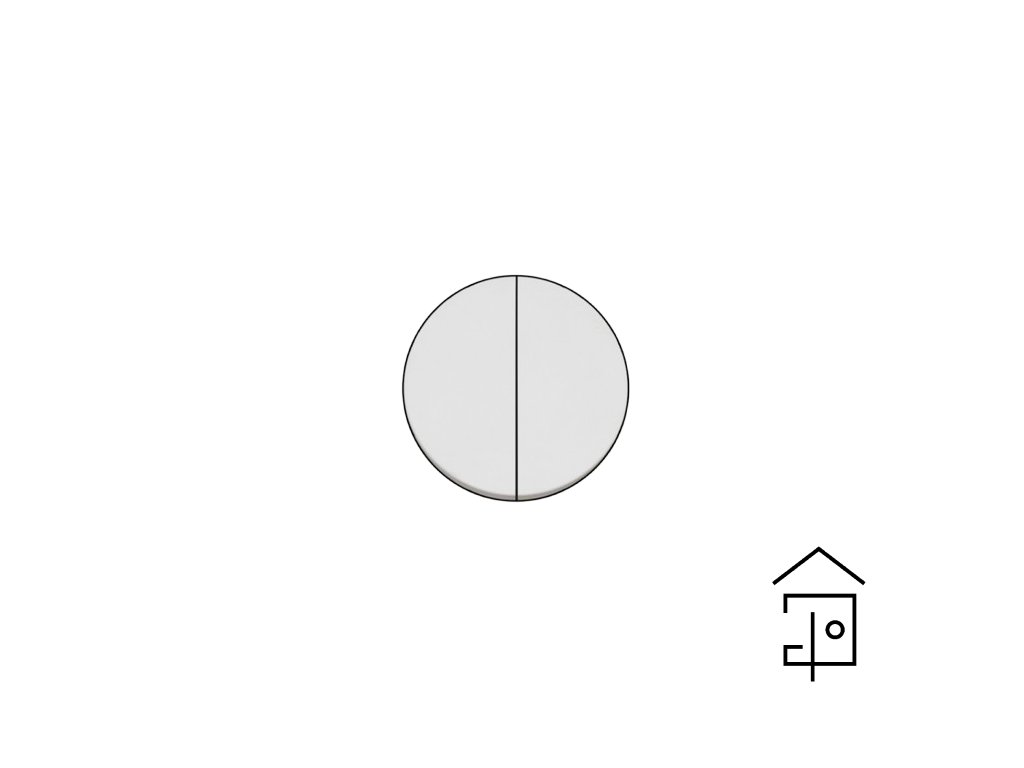

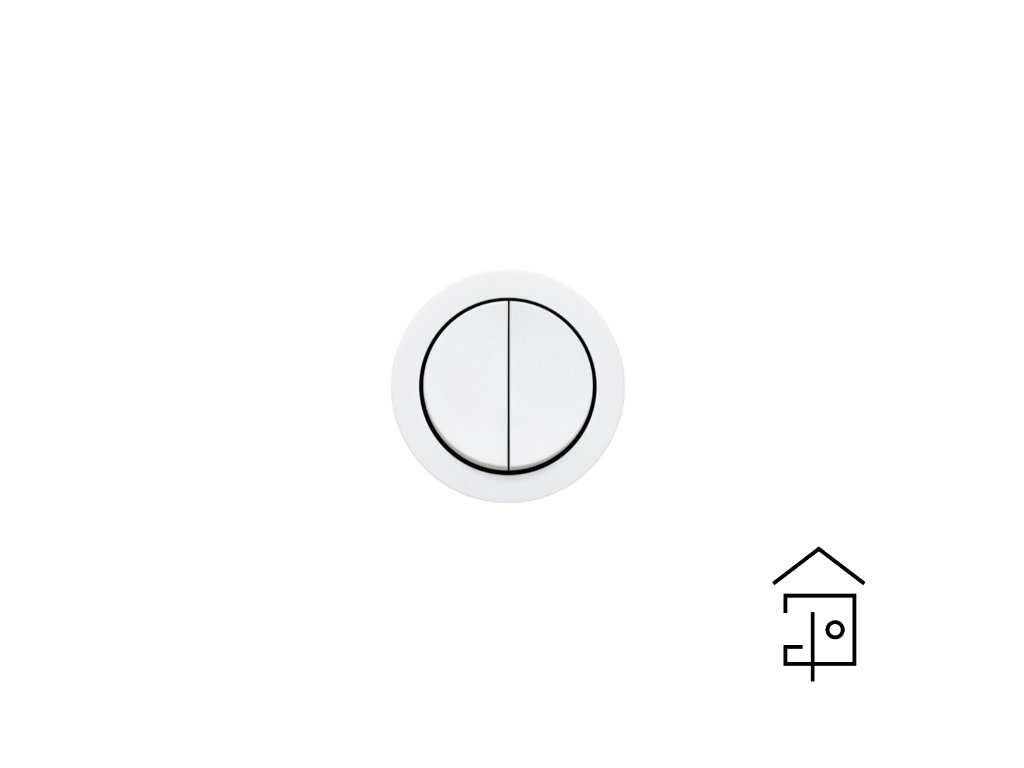

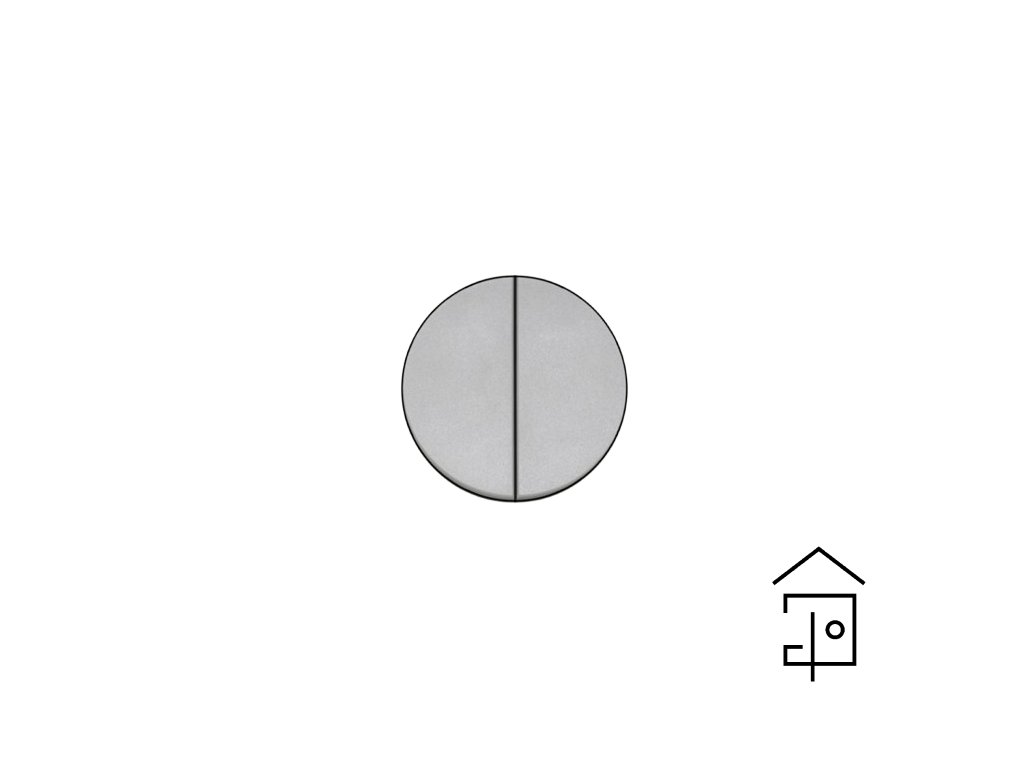

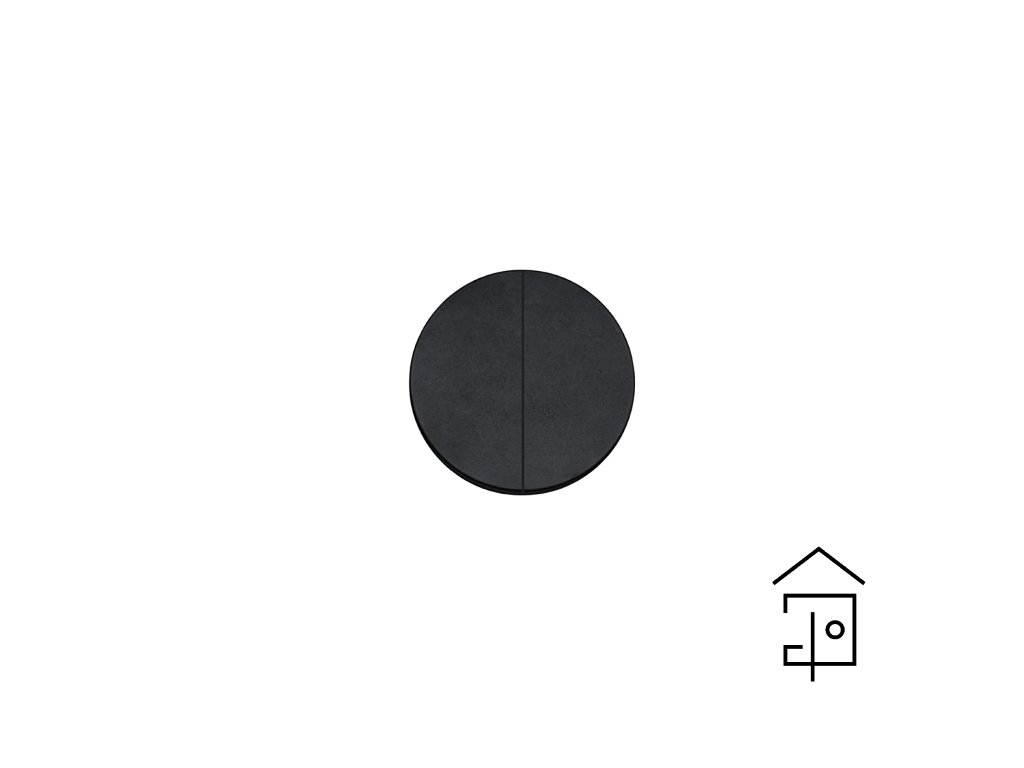

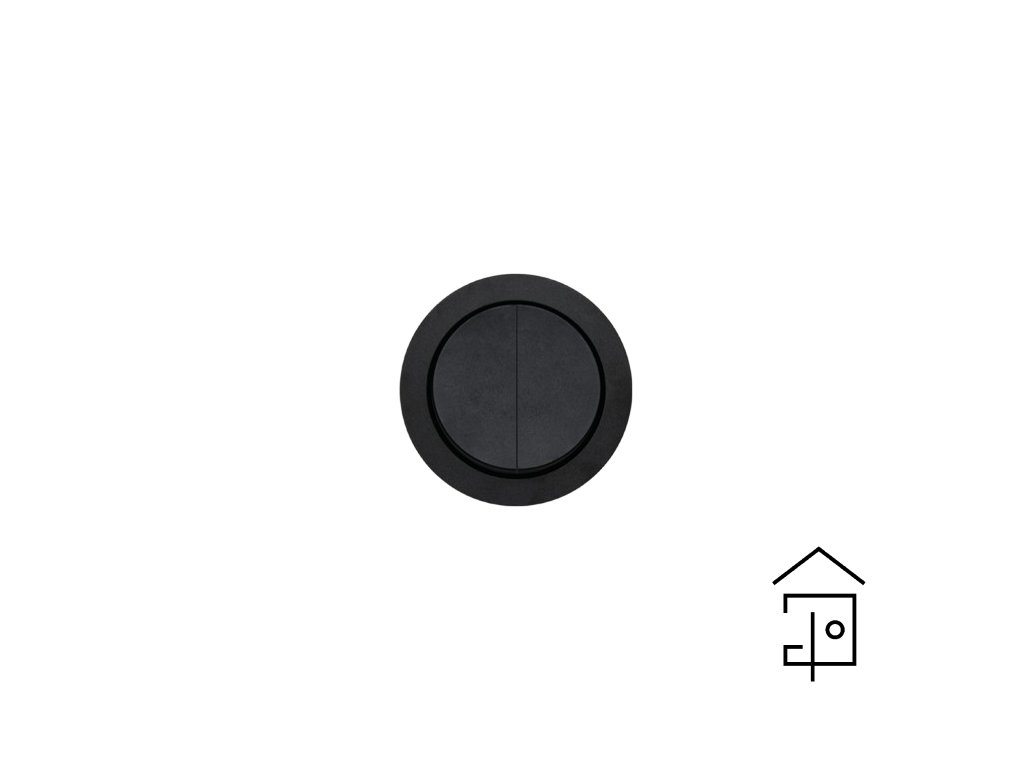

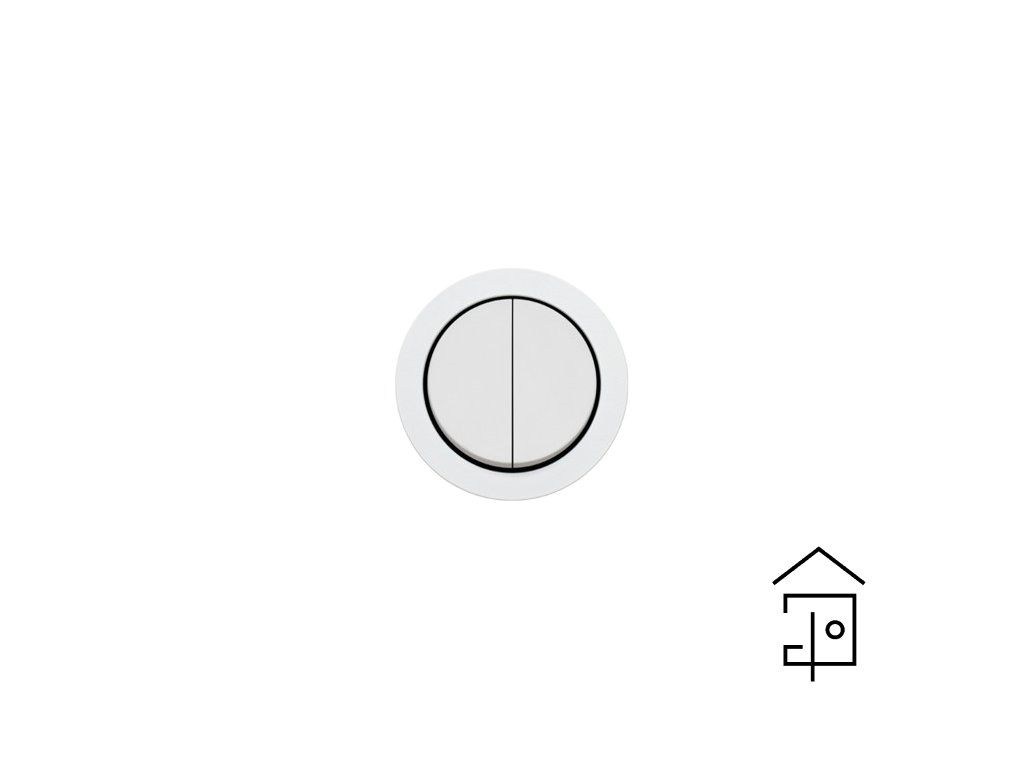

Depending on your requirements, choose your switch type: from two-pole switch for your bathroom to intermediate switch.
Installation kit not included.
|
retrofit The ultimate solution for universal junction boxes, round or square. For both new build and renovations. Available trimless or with a small trim, for easy plastering. Electrical connections remain accessible after plastering. Removable by tool. + removable +every 45° rotatable + wide range of finishes |
 |
|
easyfit The ultimate solution for brick walls. The Ø130 rond plaster box allows up to 3 times faster installation. Thanks to the all-new rond 2.0 module, electrical connections now remain accessible after plastering. Available trimless or with a small trim, for easy plastering. Same design, new possibilities. + removable + every 45° rotatable + wide range of finishes |
 |
|

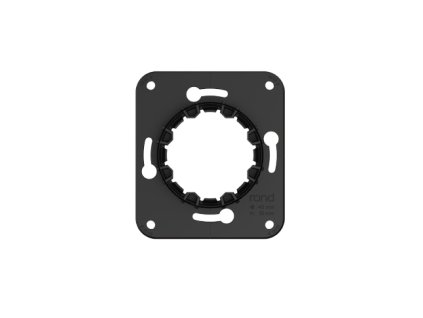

backfit The backfit holder allows you to install switches in wood, veneer and stone. Requires a Ø48 hole and a 19 mm panel thickness. Trimless or with a small trim? The choice is yours. + removable + every 45° rotatable + wide range of finishes |
 |
| Product specification | |
| Application | 10AX / 250V |
| Flush-mounting depth | 55mm |
| Wire stripping length | 10.5 mm |
| Wire capacity | up to 2 x 2,5 mm2 per terminal |
| Wire fixation | screw terminals |
| Ambient temperature | -5 till + 40°C |
| IP | IP41 |
| IK | IK06 |
| Marking | CE |
Downloads
- Product sheet switches 230V
- Installation instruction switches 230V
Additional parameters
| Category: | Push-buttons |
|---|---|
| Warranty: | 2 years |
| Design: | rond 2.0 |
| Brand: | rond |
Minimalist round switches and sockets - almost invisible, but charming
In art, architecture and design, sometimes something can attract our attention that is not actually noticeable. Or at least doesn't deliberately try to. And this is exactly the case with the almost invisible switches and socket strips in interiors, which appear to blend in perfectly with the underlying material and seemingly don't want to be seen. But it is precisely this detail, the difference to conventional switches, which are characterized by the creative use of frames and materials, that ultimately catches the eye. The switches, power and data sockets of the ronds are so subtle and their integration into the interior so visually clean and well-crafted that they were rightly awarded the Red Dot Design Award 2023.
