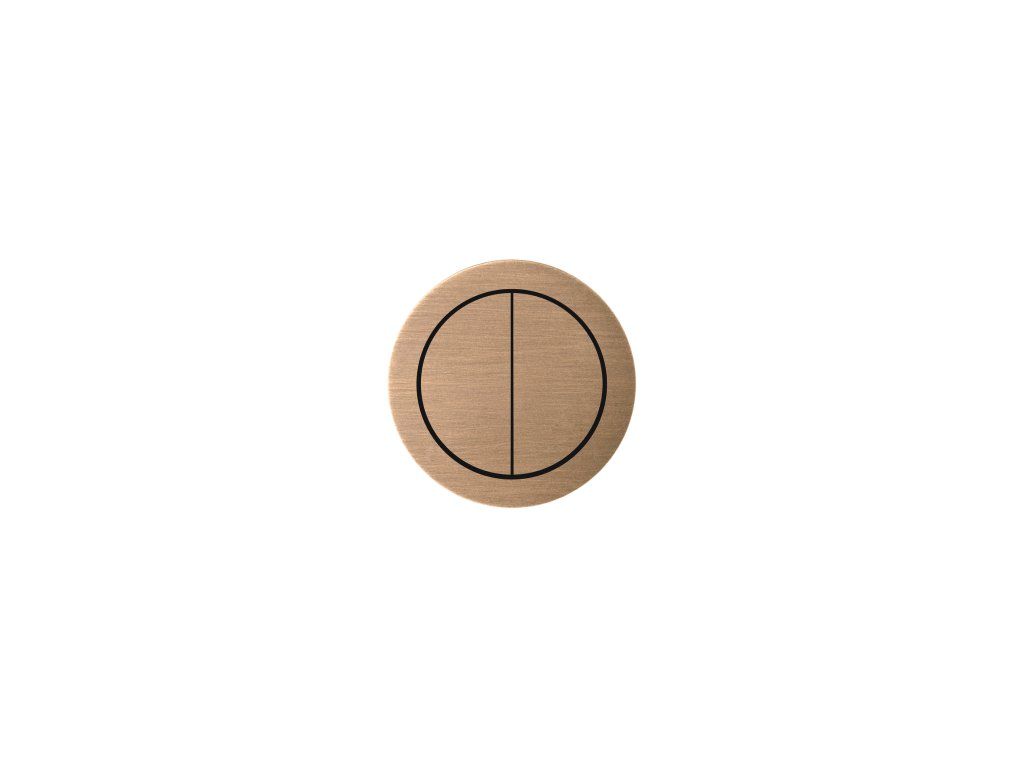

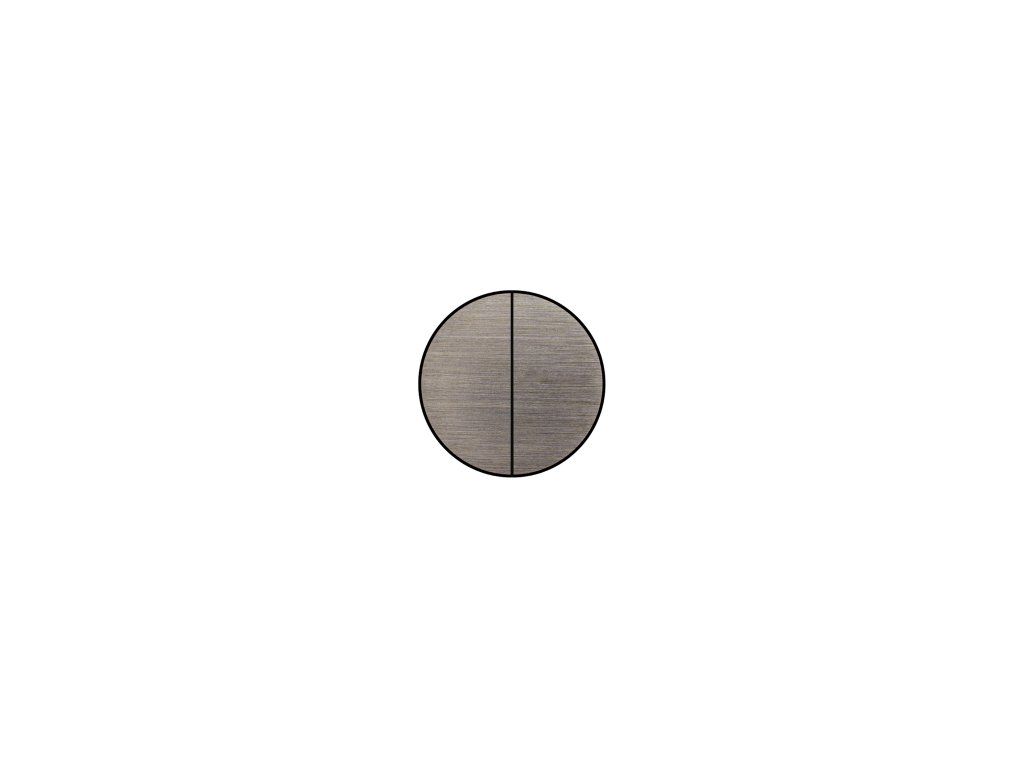

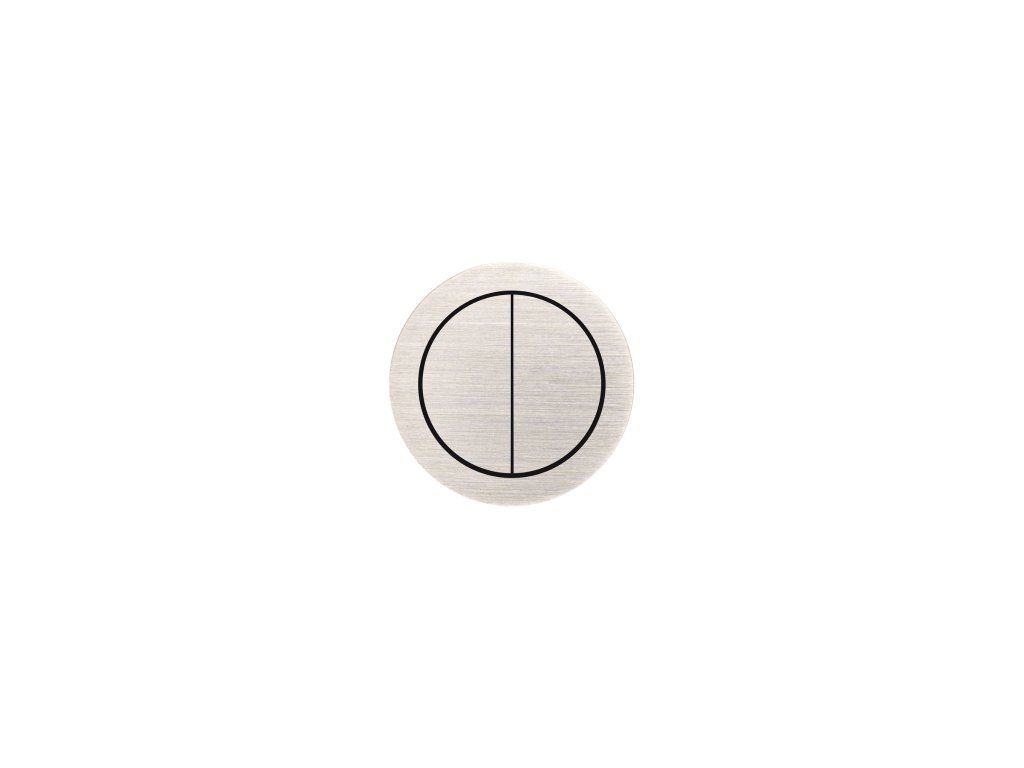

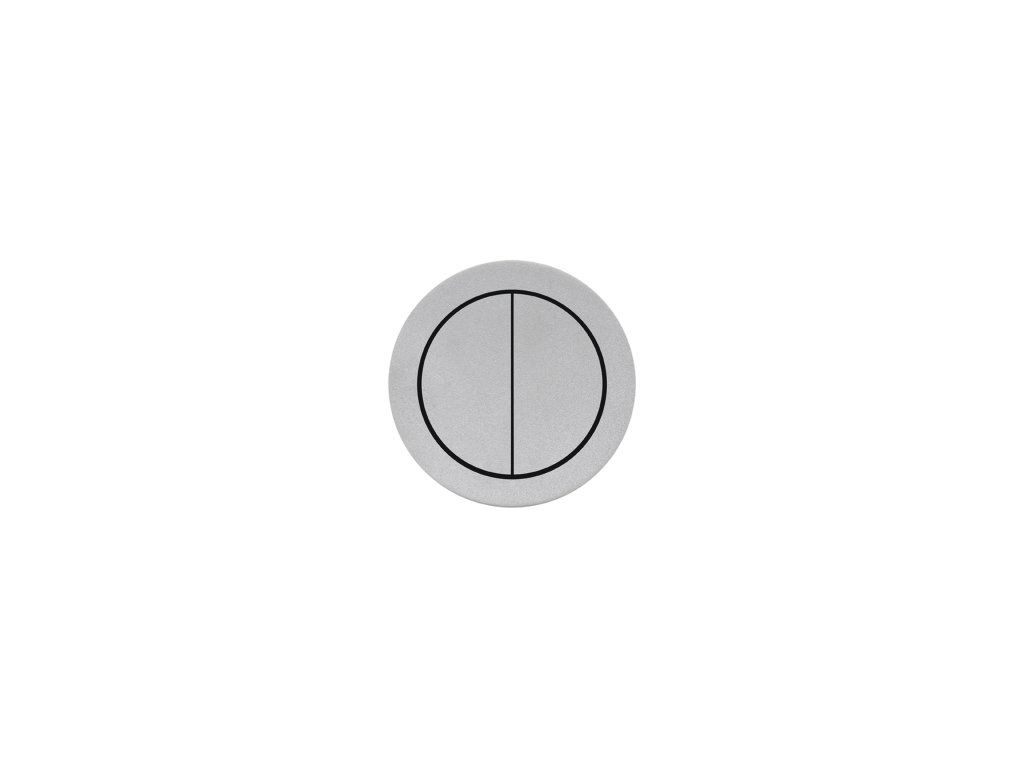

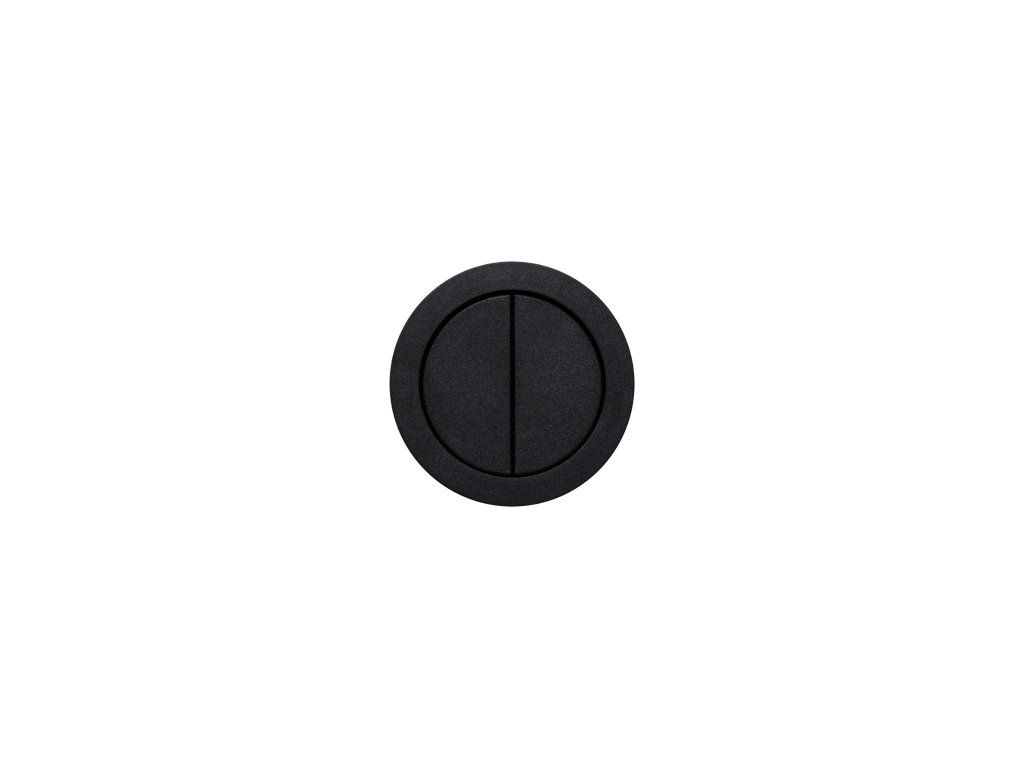

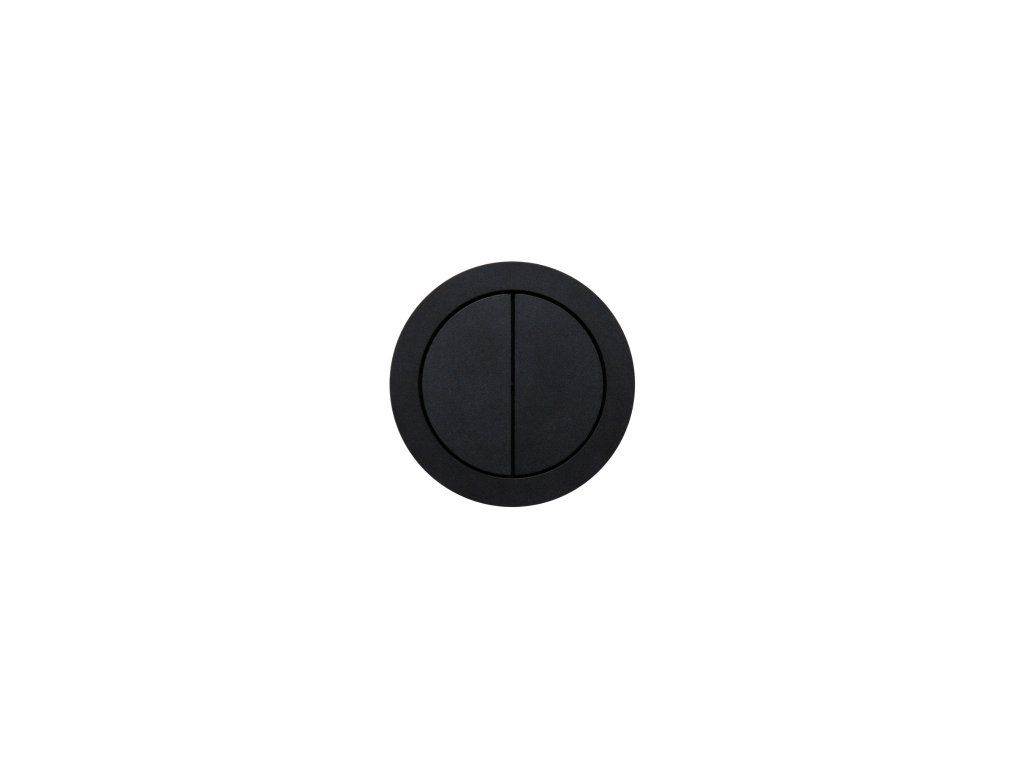

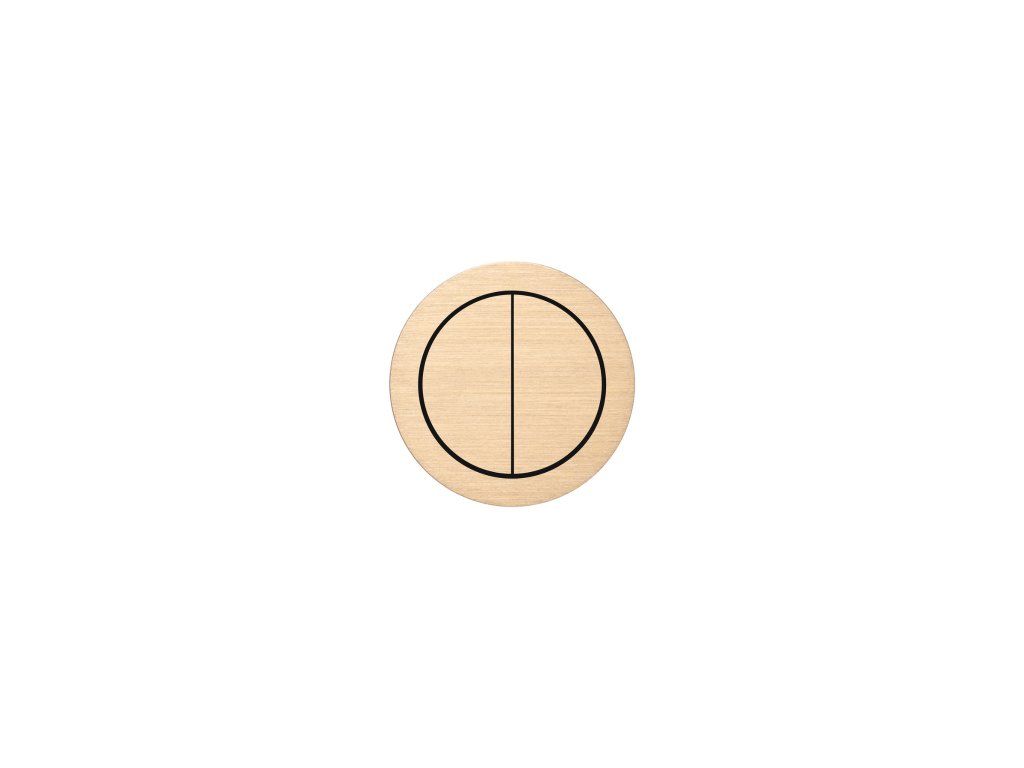

rond 2.0 | four fold push-buttons 24V - retrofit, easyfit
Suitable for plastered walls.
Accessories required for installation in wood, stone, veneer: Installation adapter Backfit holder: 8800-2016 - for panel thickness 18-19 mm - see related section
Accessories required for installation in masonry: Installation adapter Retrofit plaster ring 8800-2011 - compatible with standard junction box Ø68 - see related section
Recommended accessories: Removal tool: 8800-2010 - tool for removing sockets/switches - see related section
Discover the rond 2.0 (24 V) push-buttons with a unique design. Each button is rotatable by 45°.
And compatible with all rond 2.0 installation kits. For a wider range of applications.
Includes invisible NTC temperature sensor. Installation kit not included.
|
easyfit The perfect solution for brick walls. Plaster box Ø130 rond allows up to three times faster installation. Thanks to the brand new module rond 2.0, electrical connections now remain accessible even after plastering. Available without or with a small rail, for easy plastering. Same design, new possibilities. + removable + rotatable for 45° + wide range of finishes |
 |
|
retrofit The perfect solution for universal nstalation boxes, round or square. For new buildings and renovations. Available without or with a small rail, for easy plastering. Electrical connections remain accessible even after plastering. Removable with tools. + removable + rotatable for 45° + wide range of finishes
|
 |
|
backfit The perfect solution for universal nstalation boxes, round or square. For new buildings and renovations. Available without or with a small rail, for easy plastering. Electrical connections remain accessible even after plastering. Removable with tools. + removable + rotatable for 45° + wide range of finishes |
 |
| Mounting instructions | |
| easyfit | retrofit |
| Product details | |
| Type | potential-free, 24V, NO |
| Flush-mounting depth | 36 mm |
| Adjustability | every 45° rotatable |
| Wire capacity | min. 0.5 - max. 1.0mm2 per terminal |
| Wire fixation | plug-in terminals |
| Ambient temperature | -5 till + 40°C |
| IP coverage | IP21-D |
| IK coverage | IK06 |
| Marking | CE |
Downloads
Additional parameters
| Category: | Push-buttons |
|---|---|
| Warranty: | 2 years |
| Design: | rond 2.0 |
| Brand: | Prado |
-
Instalace - rond 2.0 push button (723.3 kB)
-
Technický list - rond 2.0 easyfit/retrofit/backfit push button (123.3 kB)
Minimalist round switches and sockets - almost invisible, but charming
In art, architecture and design, sometimes something can attract our attention that is not actually noticeable. Or at least doesn't deliberately try to. And this is exactly the case with the almost invisible switches and socket strips in interiors, which appear to blend in perfectly with the underlying material and seemingly don't want to be seen. But it is precisely this detail, the difference to conventional switches, which are characterized by the creative use of frames and materials, that ultimately catches the eye. The switches, power and data sockets of the ronds are so subtle and their integration into the interior so visually clean and well-crafted that they were rightly awarded the Red Dot Design Award 2023.
