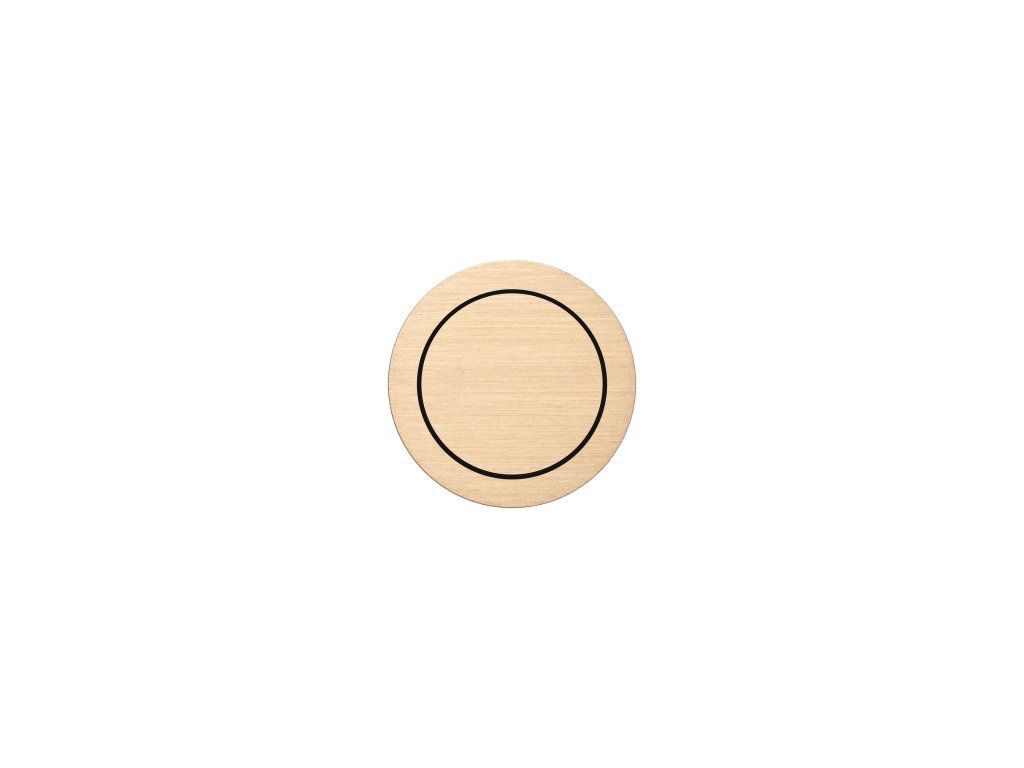

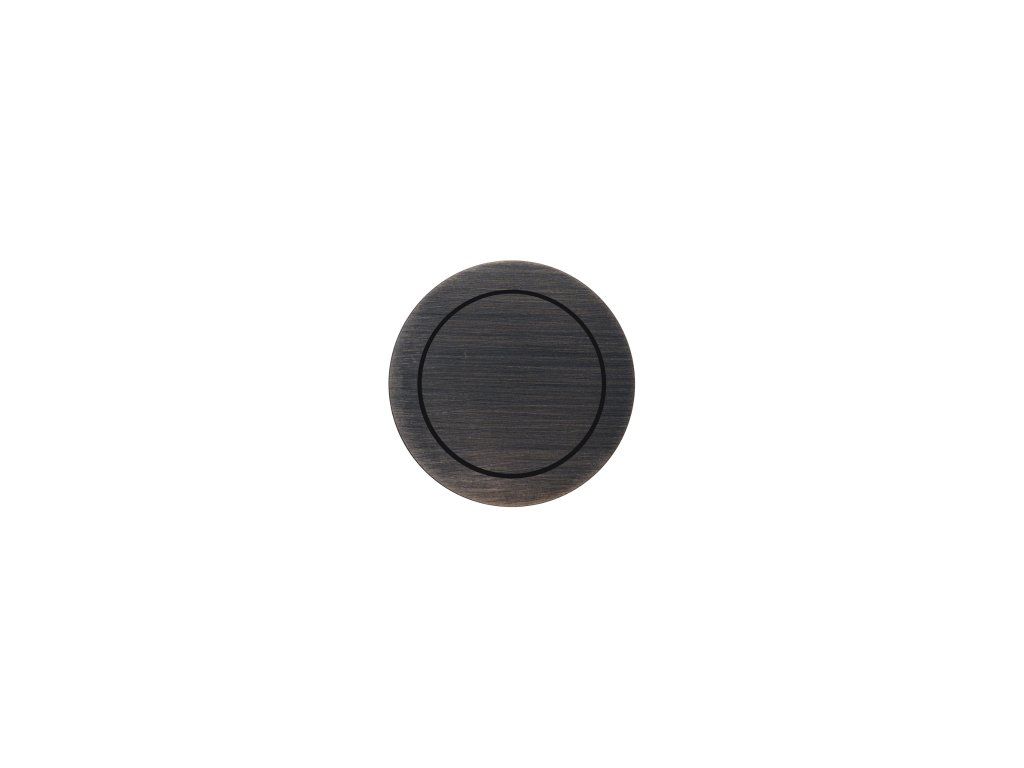

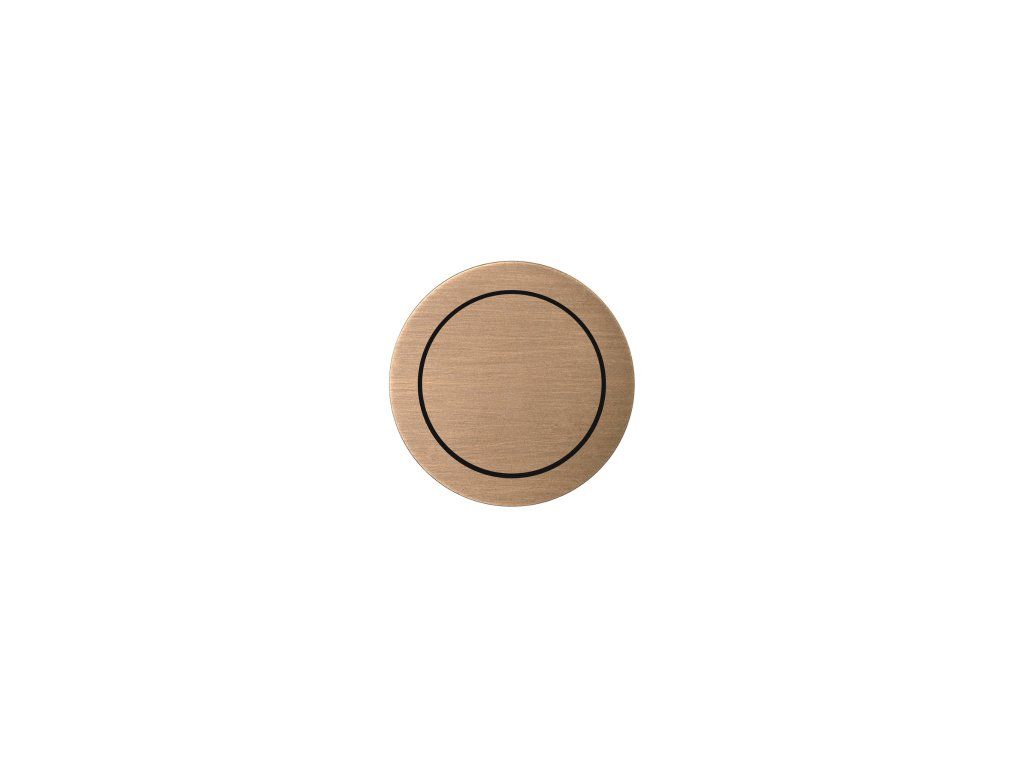

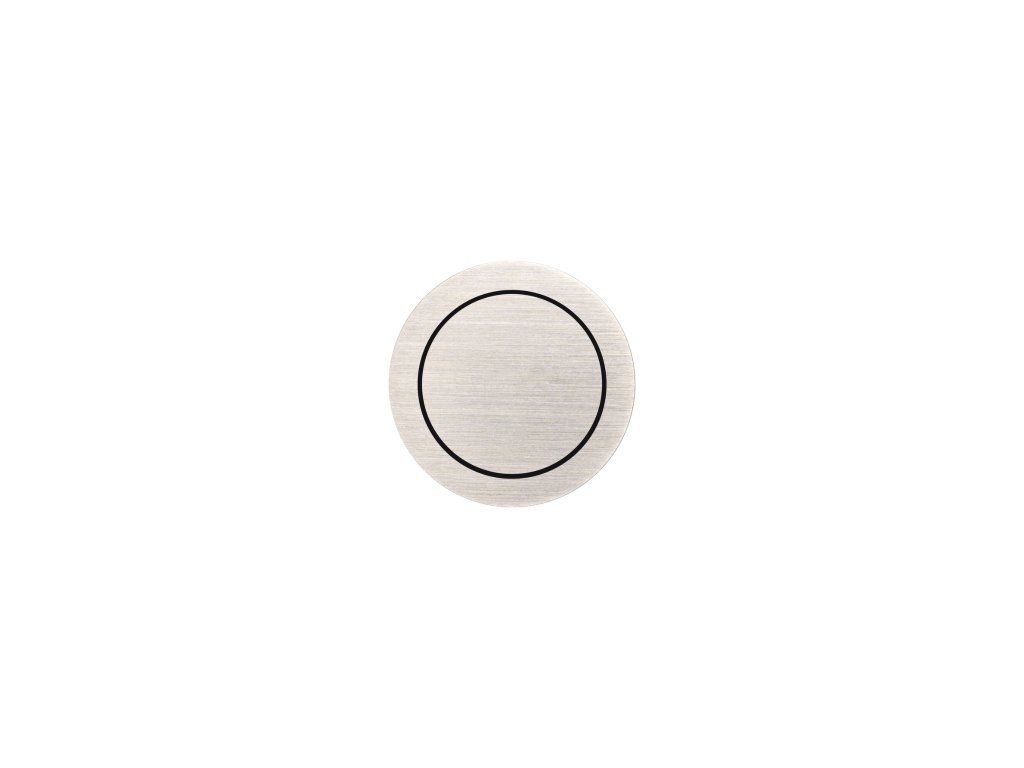

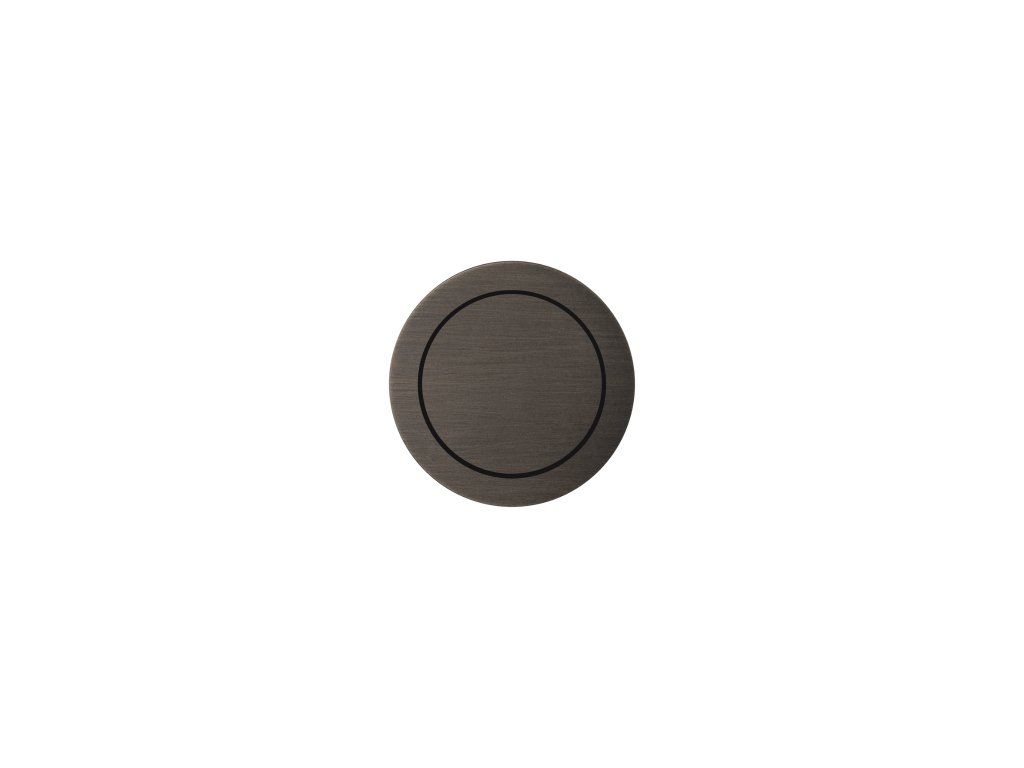

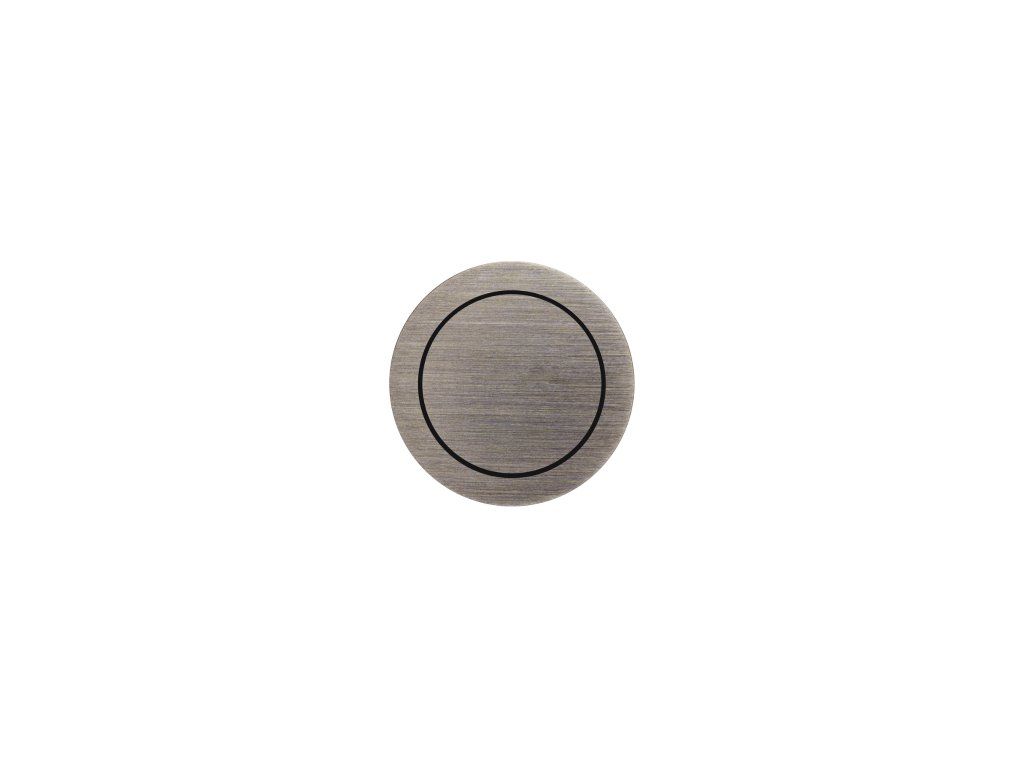

rond 2.0 | two fold push-buttons 24V - multifit
Suitable for wood, veneer or stone.
Required accessories: Installation adapter Multifit holder: 8800-2012 - for panel thickness 8-30 mm and hole Ø48 - see related section
Recommended accessories: Removal tool: 8800-2010 - tool for removing sockets - see related section
Discover the rond 2.0 (24 V) push-buttons with a unique design. Each button is rotatable by 45°.
And compatible with all rond 2.0 installation kits. For a wider range of applications.
Includes invisible NTC temperature sensor. Installation kit not included.
|
multifit The perfect solution for universal junction boxes, round or square. For new buildings and renovations. Available without rail or with small rail, for easy plastering. Electrical connections remain accessible even after plastering. Removable with tools. + removable + rotatable for 45° + wide range of finishes |
 |
| Mounting instruction | |
| multifit | |
|
|
| Product details | |
| Type | potential-free, 24V, NO |
| Flush-mounting depth | 36 mm |
| Adjustability | every 45° rotatable |
| Wire capacity | min. 0.5 - max. 1.0mm2 per terminal |
| Wire fixation | plug-in terminals |
| Ambient temperature | -5 till + 40°C |
| IP coverage | IP21-D |
| IK coverage | IK06 |
| Marking | CE |
Downloads
Additional parameters
| Category: | SWITCH DESIGNS |
|---|---|
| Warranty: | 2 years |
| Design: | rond 2.0 |
| Brand: | Prado |
-
Instalace - rond 2.0 multifit push button (723.3 kB)
-
Technický list - rond 2.0 multifit push button (123.1 kB)
