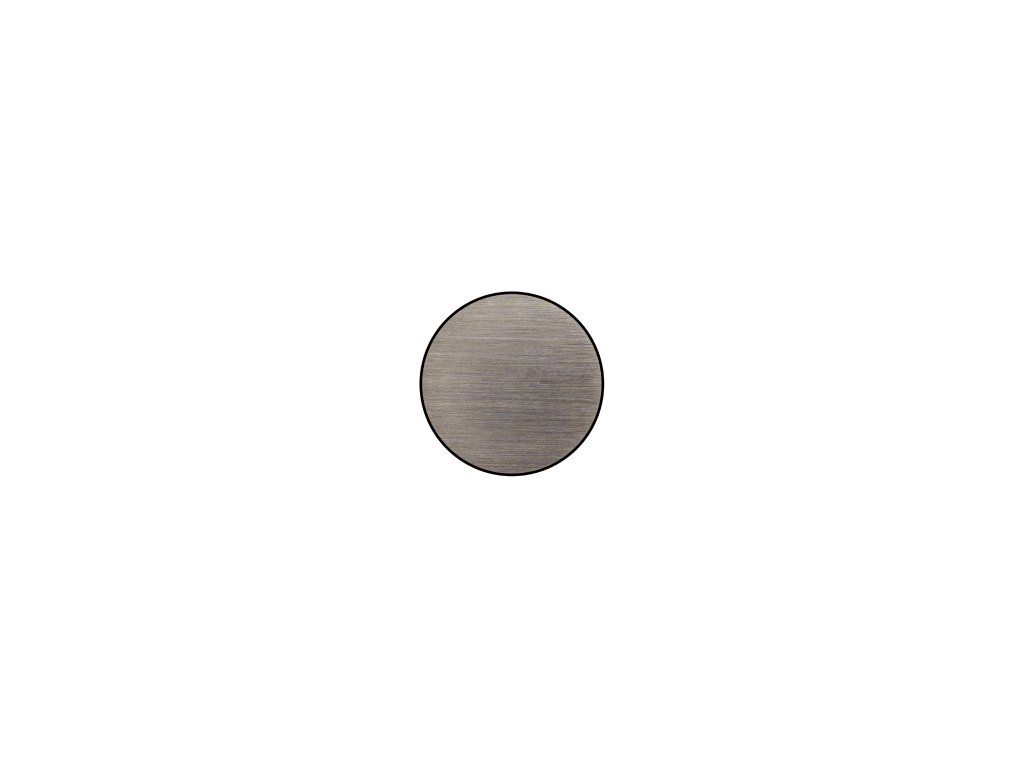

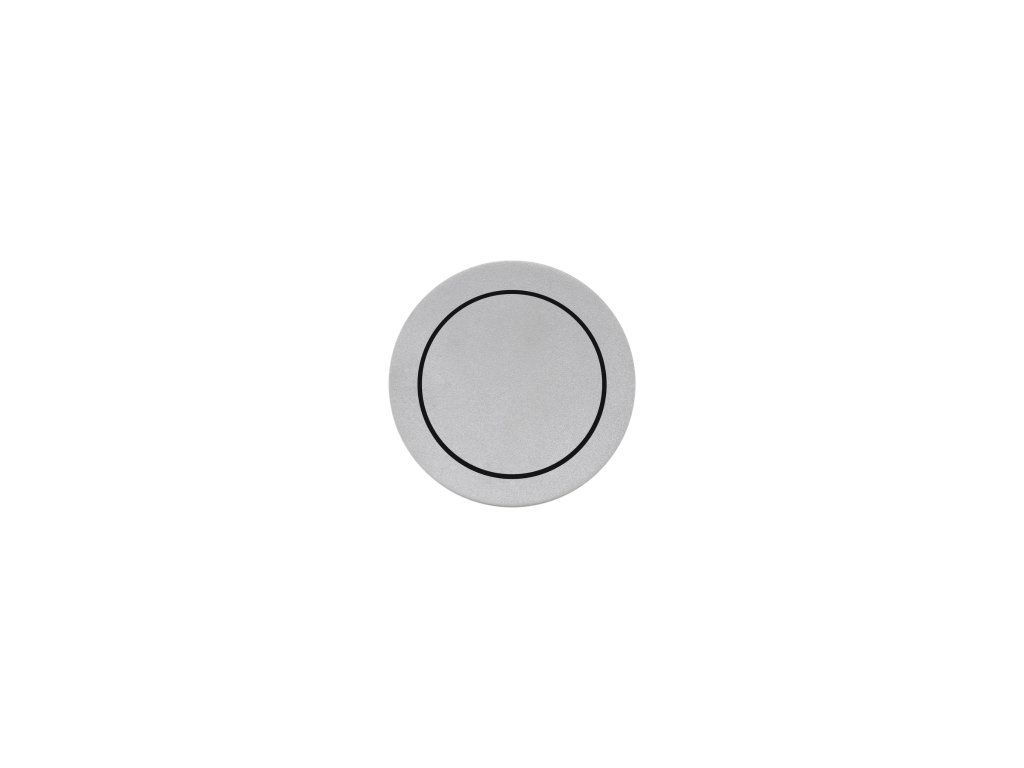

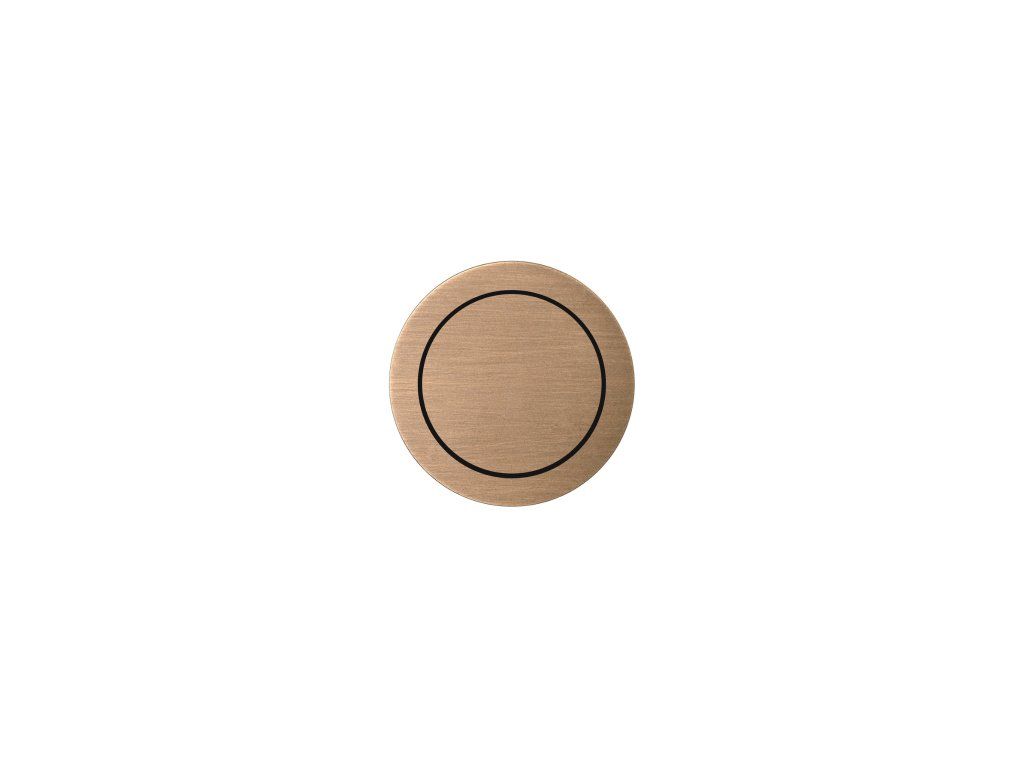

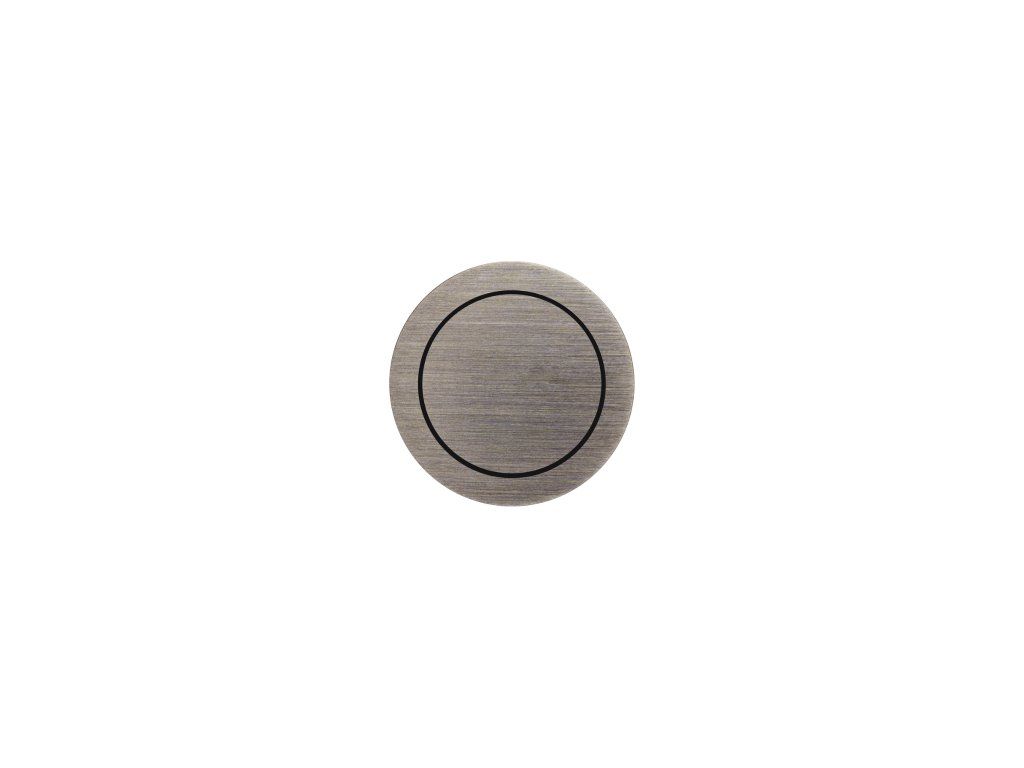

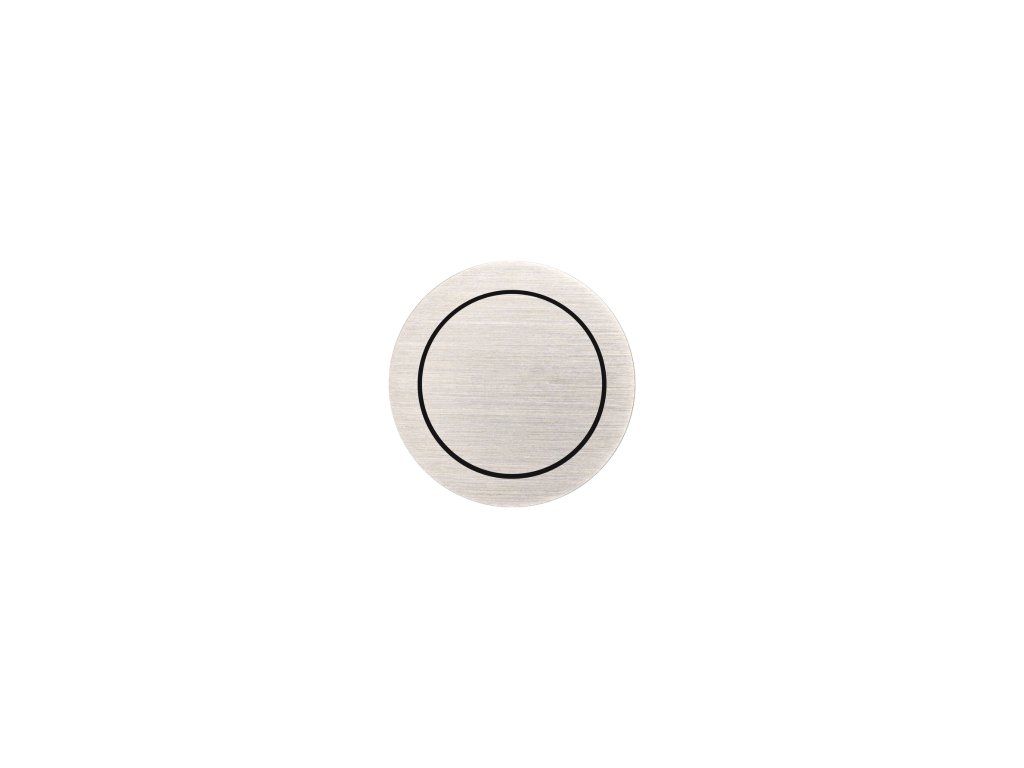

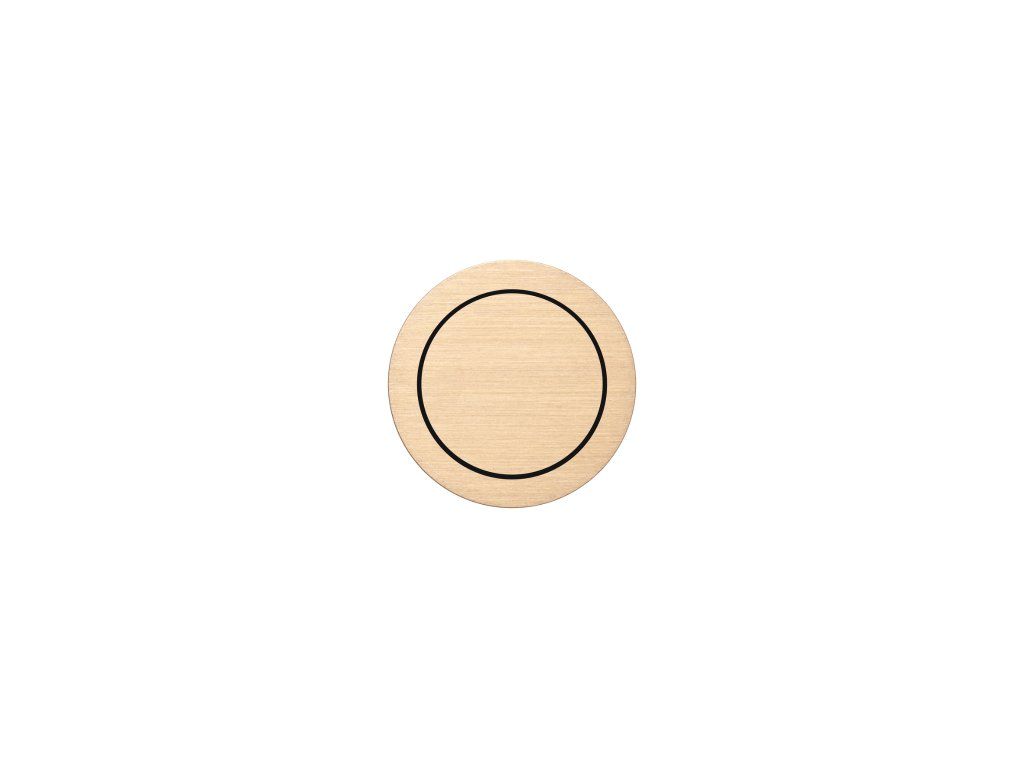

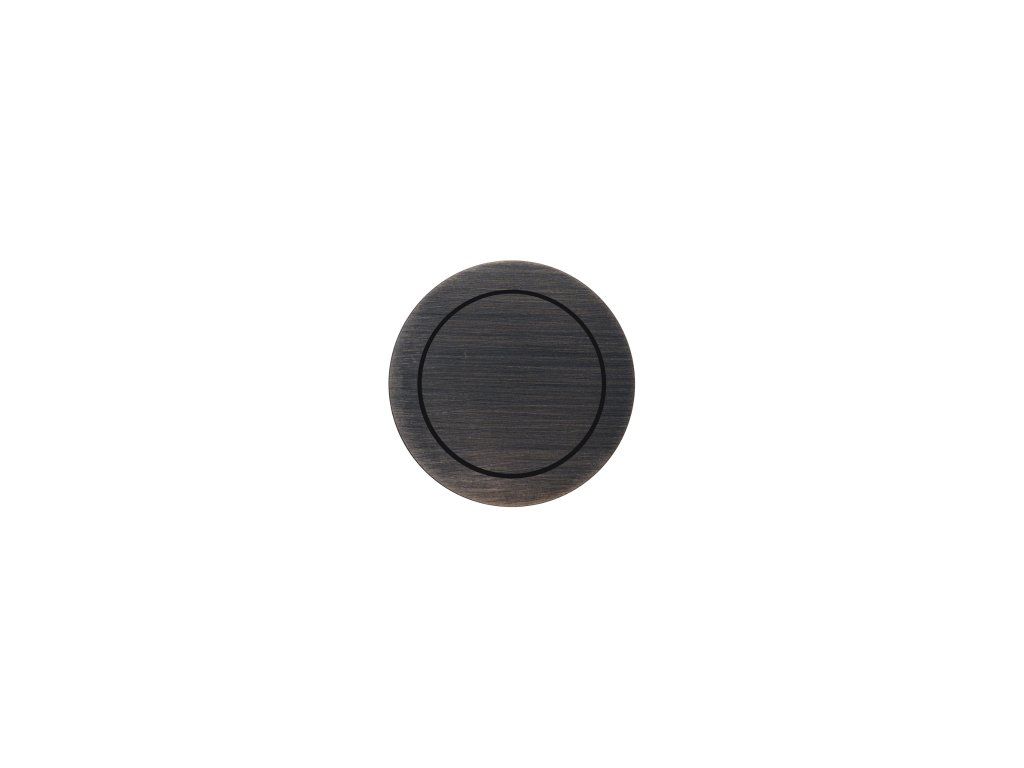

rond 2.0 | push-buttons 24V, two fold - retrofit, easyfit
Suitable for plastered walls.
Accessories required for installation in wood, stone, veneer: Installation adapter Backfit holder: 8800-2016 - for panel thickness 18-19 mm - see related section
Accessories required for installation in masonry: Installation adapter Retrofit plaster ring 8800-2011 - compatible with standard junction box Ø68 - see related section
Recommended accessories: Removal tool: 8800-2010 - tool for removing sockets/switches - see related section
Discover the rond 2.0 (24 V) push-buttons with a unique design. Each button is rotatable by 45°.
And compatible with all rond 2.0 installation kits. For a wider range of applications.
Includes invisible NTC temperature sensor. Installation kit not included.
|
easyfit The perfect solution for brick walls. Plaster box Ø130 rond allows up to three times faster installation. Thanks to the brand new module rond 2.0, electrical connections now remain accessible even after plastering. Available without or with a small rail, for easy plastering. Same design, new possibilities. + removable + rotatable for 45° + wide range of finishes |
 |
|
retrofit The perfect solution for universal nstalation boxes, round or square. For new buildings and renovations. Available without or with a small rail, for easy plastering. Electrical connections remain accessible even after plastering. Removable with tools. + removable + rotatable for 45° + wide range of finishes
|
 |
|
backfit The perfect solution for universal nstalation boxes, round or square. For new buildings and renovations. Available without or with a small rail, for easy plastering. Electrical connections remain accessible even after plastering. Removable with tools. + removable + rotatable for 45° + wide range of finishes |
 |
| Mounting instructions | |
| easyfit | retrofit |
| Product details | |
| Type | potential-free, 24V, NO |
| Flush-mounting depth | 36 mm |
| Adjustability | every 45° rotatable |
| Wire capacity | min. 0.5 - max. 1.0mm2 per terminal |
| Wire fixation | plug-in terminals |
| Ambient temperature | -5 till + 40°C |
| IP coverage | IP21-D |
| IK coverage | IK06 |
| Marking | CE |
Downloads
Additional parameters
| Category: | Push-buttons |
|---|---|
| Warranty: | 2 years |
| Design: | rond 2.0 |
| Brand: | Prado |
-
Technický list - rond 2.0 easyfit/retrofit/backfit push button (123.3 kB)
-
Instalace - rond 2.0 push button (723.3 kB)
