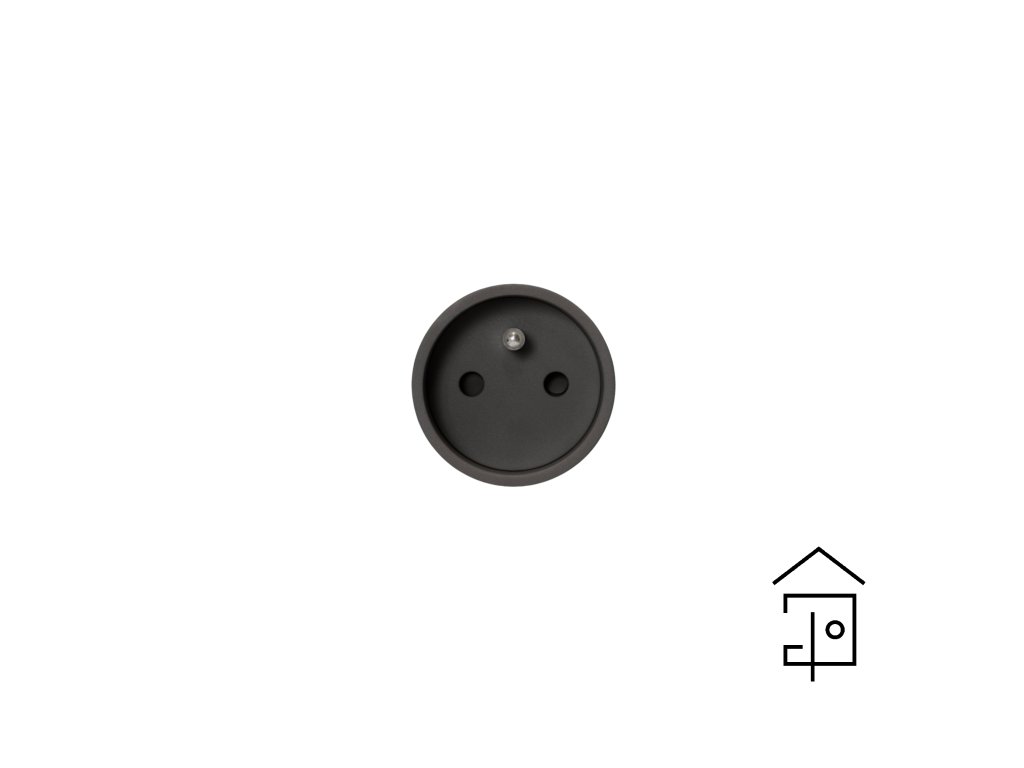

rond 2.0 | unifit socket type E, Ø45 corded
Fits in plaster, wood and stone
The world’s smallest socket. A single, all-in-one module that installs seamlessly into plaster,
wood and stone. Corded or hardwired? The choice is yours. Requires a Ø42 hole.
| Unifit hardwired | Unifit corded |
|
Comes with screw terminals. |
Comes with a 1.5m cord + plug. |
 |
 |
 |
Installation in plaster adjustable plaster ring
+ adjustable for plaster between 3.6 and 20mm + compatible with universal junction boxes, round or square |
|
Installation in furniture + comes with a 1.5m power cord + fits in a 16 to 32mm panel thickness |
 |
 |
Installation in gyproc + works with different gyproc thicknesses + requires OSB reinforcement behind the gyproc + no extra plaster ring required, comes with a 1mm trim |
| Product details | |
| Application | 16 A/ 250 V |
| Flush mount depth | 50 mm |
| Ambient temperature | -5 till + 40°C |
| IP | IP21-D |
| IK | IK06 |
| Marking | CE |
| Installation hole |
Ø42 mm |
| Flush mount countersink | Ø45.4 x 1 mm depth |
| Panel thickness | 16-32 mm (adjustable lugs) |
Attachments
Additional parameters
| Category: | Unifit Sockets |
|---|---|
| Warranty: | 2 years |
| Design: | rond 2.0 |
| Brand: | Prado |
-
Product sheet - unifit corded type E (256.3 kB)
-
Installation instruction - unifit corded type E/F (603.3 kB)
Minimalist round switches and sockets - almost invisible, but charming
In art, architecture and design, sometimes something can attract our attention that is not actually noticeable. Or at least doesn't deliberately try to. And this is exactly the case with the almost invisible switches and socket strips in interiors, which appear to blend in perfectly with the underlying material and seemingly don't want to be seen. But it is precisely this detail, the difference to conventional switches, which are characterized by the creative use of frames and materials, that ultimately catches the eye. The switches, power and data sockets of the ronds are so subtle and their integration into the interior so visually clean and well-crafted that they were rightly awarded the Red Dot Design Award 2023.
