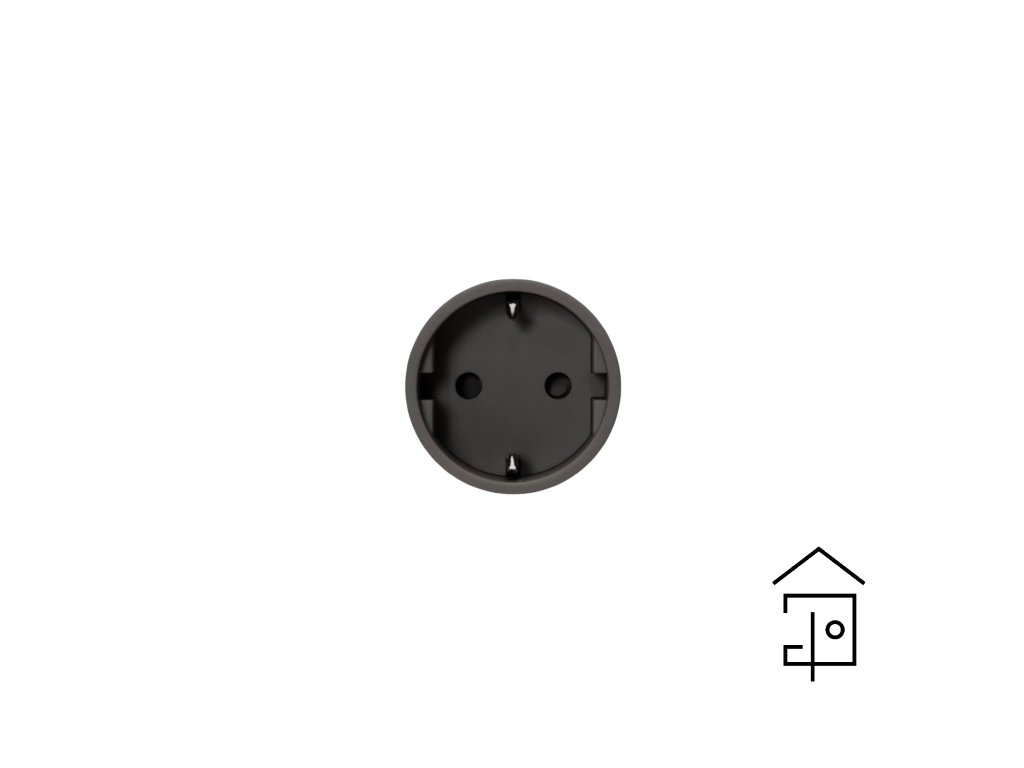

rond 2.0 | unifit socket type F, Ø45 corded
Fits in plaster, wood and stone
The world’s smallest socket. A single, all-in-one module that installs seamlessly into plaster,
wood and stone. Corded or hardwired? The choice is yours. Requires a Ø42 hole.
| Unifit hardwired | Unifit corded |
|
Comes with screw terminals. |

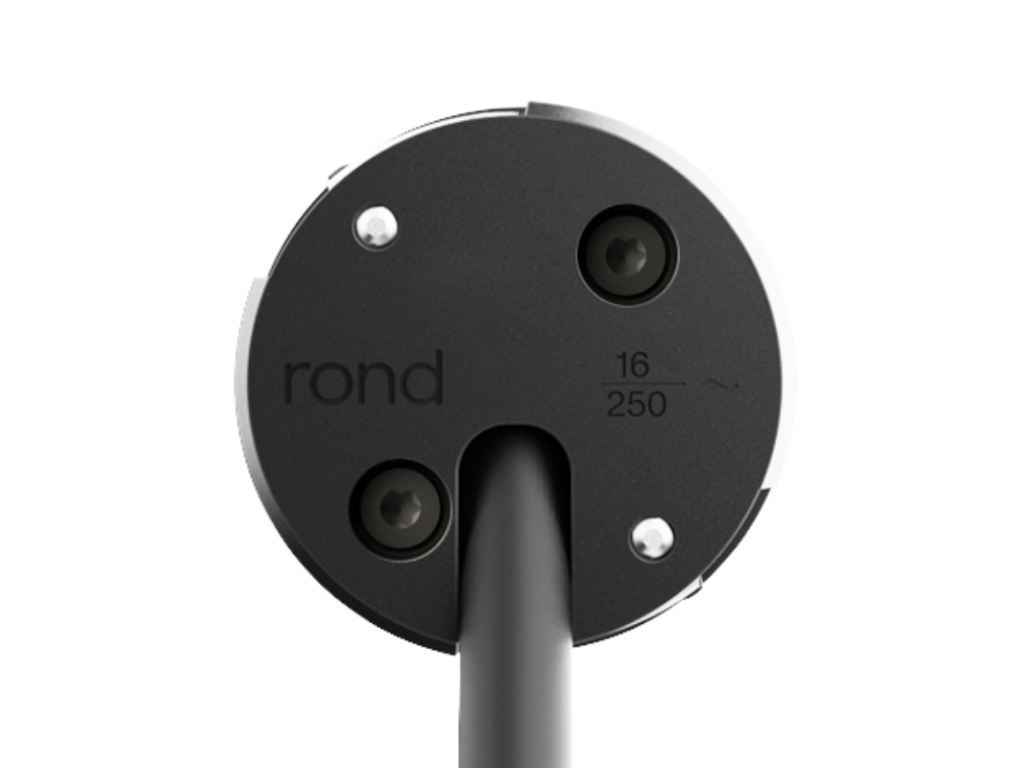

Comes with a 1.5m cord + plug. |
 |
 |
 |
Installation in plaster adjustable plaster ring
+ adjustable for plaster between 3.6 and 20mm + compatible with universal junction boxes, round or square |
|
Installation in furniture + comes with a 1.5m power cord + fits in a 16 to 32mm panel thickness |
 |
 |
Installation in gyproc + works with different gyproc thicknesses + requires OSB reinforcement behind the gyproc + no extra plaster ring required, comes with a 1mm trim |
| Product details | |
| Application | 16 A/ 250 V |
| Flush mount depth | 53 mm |
| Ambient temperature | -5 till + 40°C |
| IP | IP21-D |
| IK | IK06 |
| Marking | CE |
| Installation hole |
Ø42 mm |
| Flush mount countersink | Ø45.4 x 1 mm depth |
| Panel thickness | 16-32 mm (adjustable lugs) |
Attachments
Additional parameters
| Category: | Unifit Sockets |
|---|---|
| Warranty: | 2 years |
| Design: | rond Unifit |
| Brand: | Prado |
-
Installation instruction - unifit corded type E/F (603.3 kB)
-
Product sheet - unifit corded type F (259.1 kB)
